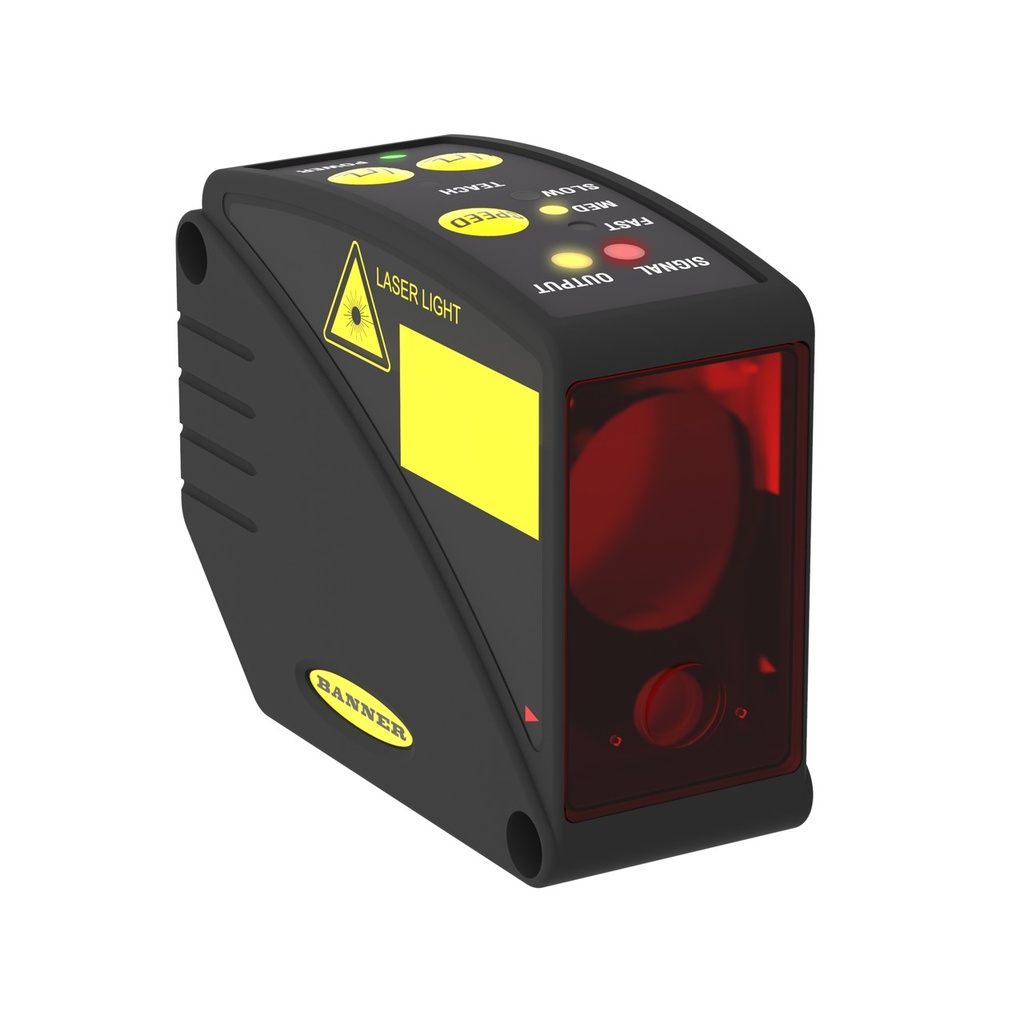

LT3 Series: Laser Diffuse Time-Of-Flight Sensor (LT3PDQPMA14)

https://www.branom.com/web/image/product.template/52263/image_1920?unique=6e7e21e
(0 review)

Features:

  • LT3 Series: Laser Diffuse Time-Of-Flight Sensor
  • Range: 300 mm to 5 m
  • Output: Discrete: 1 PNP
  • Euro 4-pin Pigtail
  • Fixed teach window 100 mm
    • Power: DC
  • Max Operating Temperature: 50 °C
  • Power Supply: 12-24 VDC
  • Ingress Protection: IP67
  • Sensing Beam: Visible Red Laser
  • Housing Style: Rectangular
  • Max Sensing Distance: 5000 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: ABS/Polycarbonate
  • Laser Classification: Class 2
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Number of Pins: 4
  • Adjustments: Push Button; Remote Teach
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Discrete
  • Min Response Time: 1 ms
  • Min Sensing Distance: 300 mm
  • Discrete (Switched) Outputs: 1 PNP
  • Feature: Remote Teach: Yes
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 0.15 m
  • Feature: Laser Control: Yes
  • Max Ambient Light: 5000 lux

$ 1,279.00 1279.0 USD $ 1,279.00

$ 1,279.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
