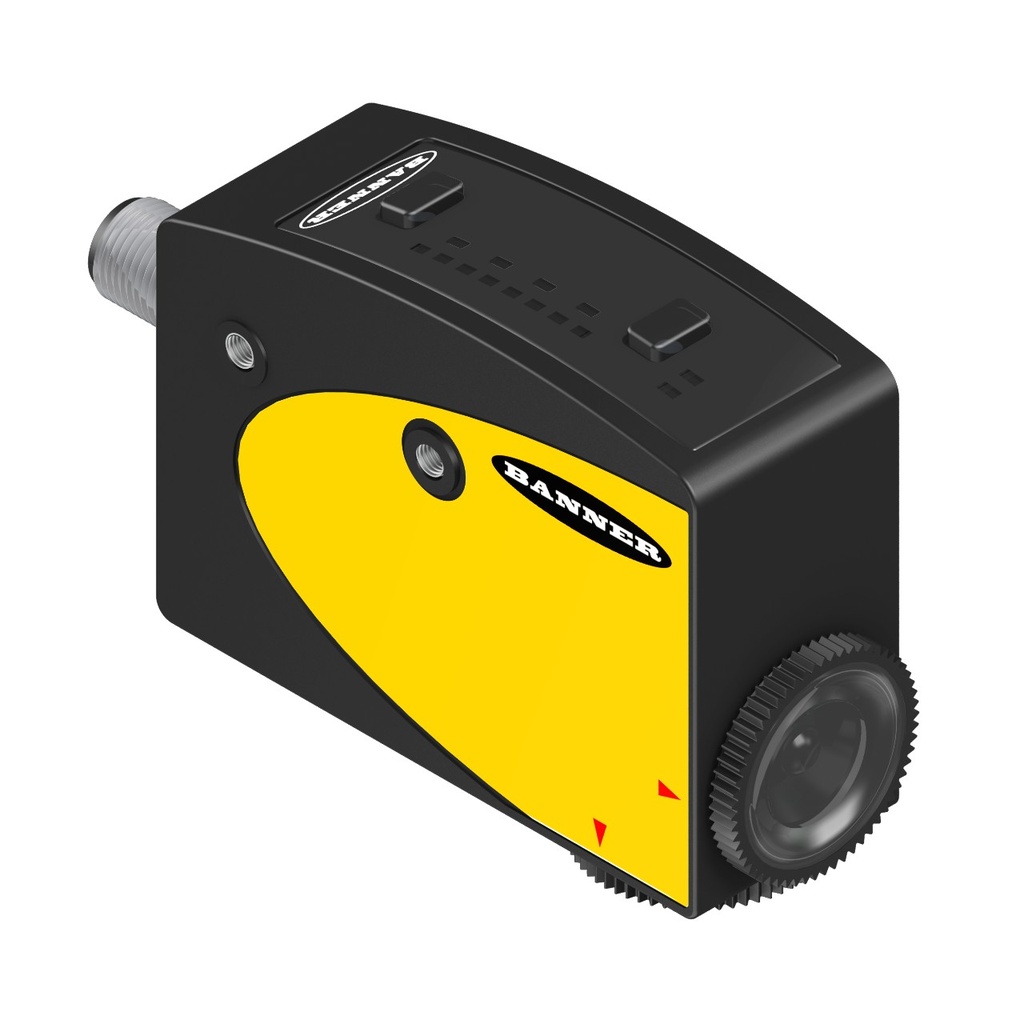

R58 EXPERT Register Mark Sensor (R58ECRGB2Q8)

https://www.branom.com/web/image/product.template/52475/image_1920?unique=6e7e21e
(0 review)

Features:

  • R58 EXPERT Register Mark Sensor
  • Input: 10-30 V dc
  • Output: Bipolar
  • 1 NPN
  • 1 PNP
  • Perpendicular Sensing Bream
  • Euro 5-pin Integral QD
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 50 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 1000 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 15
  • Sensing Beam: Red/Green/Blue LED
  • Sensing Beam Wavelength: Red: 636 nm; Green: 525 nm; Blue: 472 nm
  • Max Sensing Distance: 10 mm
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Zinc Alloy Die-Cast
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Number of Pins: 5
  • Output Response Time: 0.05 ms
  • Operation: Light/Dark Operate
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): Yes
  • Application: Registration Mark: Yes
  • Feature: Remote Teach: Yes
  • Feature: Analog Output(s): No
  • Beam Spot Size: 1.2 x 3.8 mm at 10 mm
  • LED Orientation: Perpendicular to sensor length
  • Connection Type: Integral QD
  • Feature: Application Color: No
  • Feature: Luminescence: No
  • Indicator Type: Bargraph
  • Max Sensing Range: 10 mm

$ 430.00 430.0 USD $ 430.00

$ 430.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
