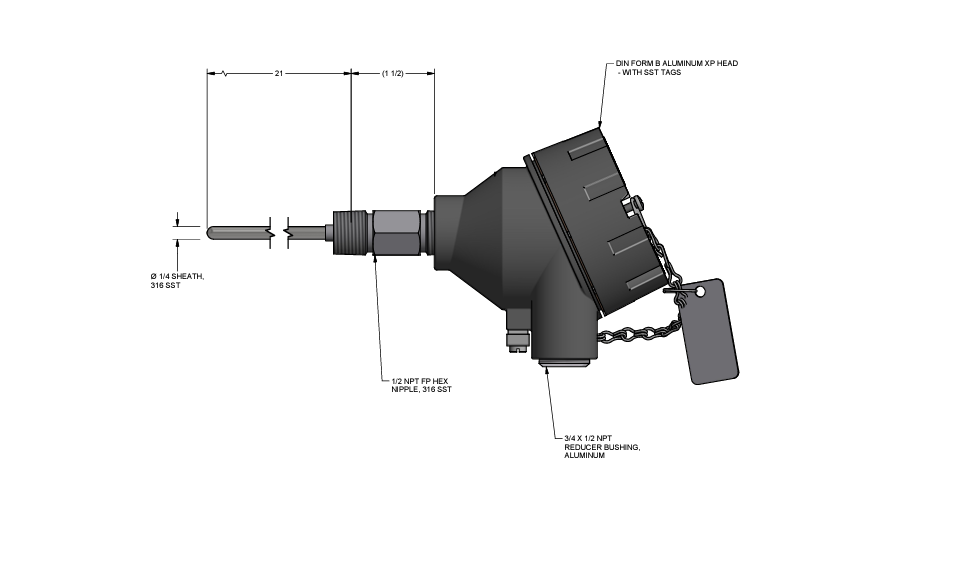

Explosion Proof RTD, 3 Wire, 21 Inch

https://www.branom.com/web/image/product.template/546222/image_1920?unique=6e7e21e
(0 review)

• CSA US/CAN Explosion Proof Certified Assembly
• Single Element RTD
• 100 ohm Platinum
• Temperature Coefficient 0.00385 ohms per Degree C
• Tolerance Class A
• Temperature Range -30 to 200 Degrees C
• 1/4 Inch Diameter 316 Stainless Steel Sheath
• 3 Wire
• Sheath Length: 21(1/2) Inches
• Spring-loaded Flame Path Fitting
• 1/2 Inch x 1/2 Inch NPT Stainless Steel Hex Nipple
• DIN Form B Aluminum Explosion/Flame Proof Head


$ 496.00 496.0 USD $ 496.00

$ 496.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    • CSA US/CAN Explosion Proof Certified Assembly
    • Single Element RTD
    • 100 ohm Platinum
    • Temperature Coefficient 0.00385 ohms per Degree C
    • Tolerance Class A
    • Temperature Range -30 to 200 Degrees C
    • 1/4 Inch Diameter 316 Stainless Steel Sheath
    • 3 Wire
    • Sheath Length: 21(1/2) Inches
    • Spring-loaded Flame Path Fitting
    • 1/2 Inch x 1/2 Inch NPT Stainless Steel Hex Nipple
    • DIN Form B Aluminum Explosion/Flame Proof Head
