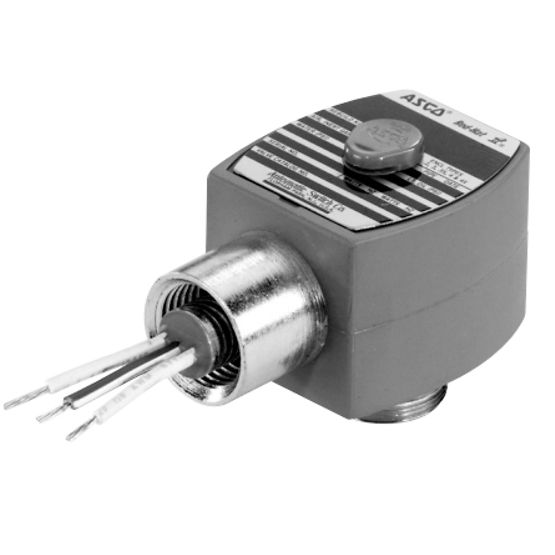

Representative photo. Please check item description for details.
Description
The ASCO Series 016 solenoid operator is the same highly reliable RedHat II molded epoxy solenoid operator used on ASCO's general purpose valves. Models are rated at 6.1 W and 9.1 W.
Features
- Standard operator: RedHat II watertight, Types 1, 2, 3, 3S, 4, and 4X
- Optional: Explosion-proof and watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9
- Nominal ambient temperature range: 32° F to 125° F (AC); 32° F to 104° F (DC)
Specifications
| Asco 016 | |
|---|---|
| Product Specifications | 6.1 Watt | F Class, 9.1 Watt | F Class |
| Solenoid Option | None, Explosionproof (G001), Explosionproof (G002), Junction Box (G001), Junction Box (G002), Factory Assembled Junction Box, Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (G001), Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (G002), Factory Assembled Junction Box & Explosionproof, 3/4" Conduit, Open Frame Spade and Screw Terminal Solenoids |
| Coil Options | None, Class H - Intermediate Power, Class H - High Temperature, Class H - Intermediate Power - Screw Terminals, Class F - High Temperature - Screw Terminals, Class H - High Temperature - Screw Terminals, Class F - Intermediate Power - Screw Terminals, Class F - High Temperature - DIN Connection, Class F - Intermediate Power - DIN Connection, Class F - High Temperature - Spade Terminals, Class F - Intermediate Power - Spade Terminals, Class H - Intermediate Power - Spade Terminals, Class H - High Temperature - Spade Terminals, Class H - High Temperature - DIN Connection, Class H - Intermediate Power - DIN Connection |
| Optional Lead Type | Standard, Continuous Leads |
| Lead Length | Standard, 18" Leads, 72" Leads |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Valve Features | |
|---|---|
| Valve: Brand | Asco |
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Disc Material | NBR, PA |
| Valve: Enclosure Type | Redhat II - Watertight, Redhat II - Explosionproof & Watertight |
| Valve: Seal Material | NBR |
| Valve: Shading Coil | Copper |
| Valve: Springs | Stainless Steel |
| Valve: Core Tube | Stainless Steel |
