  3. Gems LS-1950 Float Switch, All Stainless Steel for High Pressure and Temperature, 750 PSI/ 300°F Max, SPST 20VA Switch (Reversible), 316SS Stem, Mounting and Float, 0.75 Minimum Specific Gravity
Public Pricelist (v2)
Gems LS-1950 Float Switch, All Stainless Steel for High Pressure and Temperature, 750 PSI/ 300°F Max, SPST 20VA Switch (Reversible), 316SS Stem, Mounting and Float, 0.75 Minimum Specific Gravity

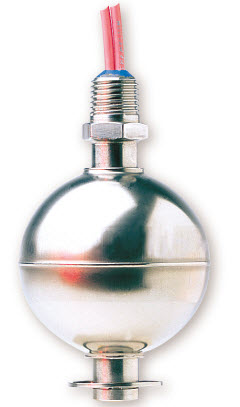

Representative photo. Please check item description for details.

Gems LS-1950 Float Switch, All Stainless Steel for High Pressure and Temperature, 750 PSI/ 300°F Max, SPST 20VA Switch (Reversible), 316SS Stem, Mounting and Float, 0.75 Minimum Specific Gravity

https://www.branom.com/web/image/product.template/176671/image_1920?unique=6fc9b34
(0 review)

$ 156.20 156.2 USD $ 156.20

$ 156.20

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Description

    LS-1950 Series Single-Point Level Switches provide high temperature and pressure capabilities for high performance applications, including oils, water and chemicals. The materials of construction comply with FDA food contact regulations and the switch

    is exceptionally accurate and rugged for higher temperatures and in pressurized or corrosive liquids.

  • Sku: 01950
  • Model: LS-1950
  • Sensor Type: Float Type
  • Primary Material Of Construction: Alloy
  • Wetted Materials: 316 Stainless Steel
  • Stem Material: Stainless Steel
  • Float Material: 316 Stainless Steel
  • Float Diameter: 2 1/16"
  • Actuation Level: 1 3/32"
  • Min. Liquid SG: 0.75
  • Maximum Pressure: 750 psi
  • Minimum Temperature: -40°F
  • Maximum Temperature: 480°F
  • Mounting Size: 1/4" NPT Male
  • Mounting Style: Vertical
  • Electrical Termination: 25" Long, 18 AWG, Polymeric Leads
  • Switch Type: SPST (20 VA)
  • Switch Operation: Normally Open: (Reversible)
  • Input: N/A
  • Output: N/A
  • Approvals: UL Recognized, CSA Listed, CE,: ROHS
