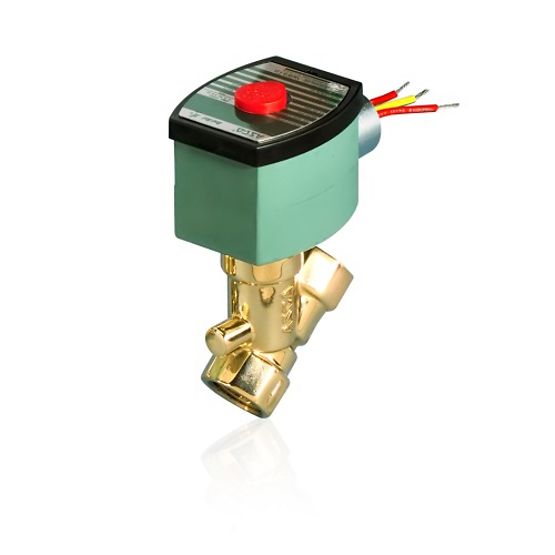

Representative photo. Please check item description for details.

030 Series 1/2" Brass 2-Way NC Gas Shutoff Valve

https://www.branom.com/web/image/product.template/536212/image_1920?unique=4e50e95
(0 review)

Manufacturer: Asco LP

Mfg Product Code:

On Hand: 0

The ASCO Series 030, also known as 8030, is a direct-acting low-pressure solenoid valve with up to 15 psi (1 Bar) maximum differential. Valves available in brass or stainless steel, normally open or normally closed and pipe sizes 3/8-inch thru 3/4. They are widely used for dispensing, collating, vacuum holding, tank draining and gas shutoff applications. The normally open version is well suited for gas venting.

Features

  • Ideal for low pressure general service and vacuum applications
  • Brass constructions available for fuel gas service in commercial and industrial gas burners
  • Gas shutoff model has 2-way normally closed operation
  • Gas vent model has 2-way normally open operation
  • Most constructions mountable in any position for convenient installation

281.00 281.0 USD 281.00

281.00

Not Available For Sale

  • Product Specifications
  • Solenoid Option
  • Coil Options
  • Optional Lead Type
  • Lead Length
  • Valve Brand
  • Pipe Size
  • Actuation
  • Body Material
  • Core and Plugnut
  • Core Guide
  • Core Tube
  • Disc Material
  • Enclosure Type
  • Enclosure Type
  • Flow Factor (Cv)
  • Media
  • Min Pressure (psi)
  • Max Pressure (psi)
  • Max Temperature °F
  • Mounting Position
  • Orifice
  • Rider Rings
  • Seal Material
  • Shading Coil
  • Springs
  • Valve Function

This combination does not exist.


Product Datasheets

Datasheet 1

030 Series 1/2" Brass 2-Way NC Gas Shutoff Valve

  • Product Specifications
  • Solenoid Option
  • Coil Options
  • Optional Lead Type
  • Lead Length
  • Valve Brand
  • Pipe Size
  • Actuation
  • Body Material
  • Core and Plugnut
  • Core Guide
  • Core Tube
  • Disc Material
  • Enclosure Type
  • Enclosure Type
  • Flow Factor (Cv)
  • Media
  • Min Pressure (psi)
  • Max Pressure (psi)
  • Max Temperature °F
  • Mounting Position
  • Orifice
  • Rider Rings
  • Seal Material
  • Shading Coil
  • Springs
  • Valve Function

281.00 281.0 USD 281.00

281.00

Not Available For Sale

This combination does not exist.


Product Specifications:[G069] 7/16" Orifice | 2.8 Cv Flow
Valve Brand:Asco
Pipe Size:1/2in
Actuation:Solenoid - Direct Acting
Body Material:Brass
Core and Plugnut:430F SS
Core Guide:POM
Core Tube:305 SS
Disc Material:NBR
Enclosure Type:Watertight, Redhat II - Explosionproof & Watertight
Flow Factor (Cv):2.8
Media:Fuel Gas
Min Pressure (psi):0
Max Pressure (psi):8
Max Temperature °F:125
Mounting Position:Any
Orifice:7/16in
Rider Rings:PTFE
Seal Material:NBR
Shading Coil:Copper
Springs:302 SS
Valve Function:2-Way Normally Closed


Specifications

8030 Series Gas Shutoff Valve
Solenoid Option None or [EF] Explosionproof or [J] Junction Box or [JB] Factory Assembled Junction Box or [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit or [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit or [OF] Open Frame Spade and Screw Terminal Solenoids
Coil Options None or [HT] Class H - High Temperature or [KF] Class F - High Temperature - Screw Terminals or [KH] Class H - High Temperature - Screw Terminals or [SC] Class F - High Temperature - DIN Connection or [SF] Class F - High Temperature - Spade Terminals or [ST] Class H - High Temperature - Spade Terminals or [SU] Class H - High Temperature - DIN Connection or [ZT] Class F - High Temperature - Mini 3 Pin Connector
Optional Lead Type Standard or [L] Continuous Leads
Lead Length Standard or 18" [D] or 72" [K]
Product Specifications [G069] 7/16" Orifice | 2.8 Cv Flow
Valve Features
Valve Brand Asco
Pipe Size 1/2in
Actuation Solenoid - Direct Acting
Body Material Brass
Core and Plugnut 430F SS
Core Guide POM
Core Tube 305 SS
Disc Material NBR
Enclosure Type Watertight, Redhat II - Explosionproof & Watertight
Flow Factor (Cv) 2.8
Media Fuel Gas
Min Pressure (psi) 0
Max Pressure (psi) 8
Max Temperature °F 125
Mounting Position Any
Orifice 7/16in
Rider Rings PTFE
Seal Material NBR
Shading Coil Copper
Springs 302 SS
Valve Function 2-Way Normally Closed
