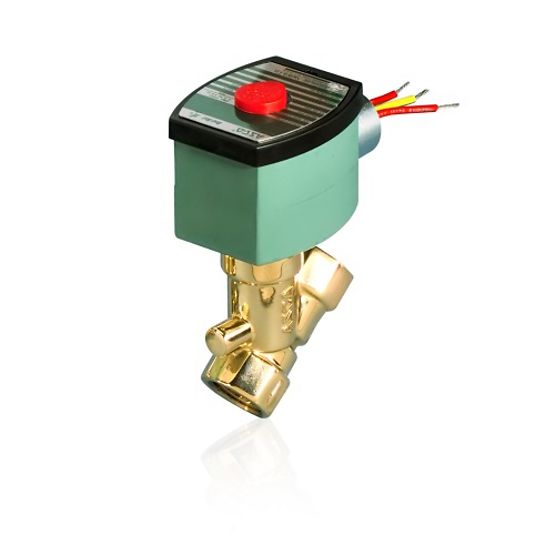

030 Series NC Low-Pressure Solenoid Valve
Manufacturer: Asco LP
Mfg Product Code:
The ASCO Series 030, also known as 8030, is a direct-acting low-pressure solenoid valve with up to 15 psi (1 Bar) maximum differential. Valves available in brass or stainless steel, normally open or normally closed and pipe sizes 3/8-inch thru 3/4. They are widely used for dispensing, collating, vacuum holding, tank draining and gas shutoff applications. The normally open version is well suited for gas venting.
Features
- Ideal for low pressure general service and vacuum applications
- Brass constructions available for fuel gas service in commercial and industrial gas burners
- Gas shutoff model has 2-way normally closed operation
- Gas vent model has 2-way normally open operation
- Most constructions mountable in any position for convenient installation
030 Series NC Low-Pressure Solenoid Valve
Valve Brand:Asco
Pipe Size:3/8in, 1/2in, 3/4in, 3/8in
Actuation:Solenoid - Direct Acting
Body Material:Brass, 304 SS
Core and Plugnut:430F SS
Core Springs:302 SS
Core Tube:305 SS
Disc Material:NBR
Enclosure Type:Watertight, Explosionproof & Watertight
Flow Factor (Cv):5.4, 1.8
Media:Air-Inert Gas, Natural Gas, Water
Min Pressure (psi):0
Max Pressure (psi):15
Min Temperature °F:32
Max Temperature °F:125
Mounting Position:Any, Vertical & Upright
Seal Material:NBR
Shading Coil:Copper, Silver
Stem:PA
Valve Function:2-Way Normally Closed
Specifications
8030 Series NC Low-Pressure Sol Valve | |
---|---|
Product Specifications | [G010] Brass | 3/8" Pipe | 3/8" Orifice | 1.8 Cv Flow or [G013] Brass | 3/8" Pipe | 3/8" Orifice | 1.8 Cv Flow or [G016] Brass | 1/2" Pipe | 7/16" Orifice | 2.8 Cv Flow or [A017] Brass | 1/2" Pipe | 7/16" Orifice | 2.8 Cv Flow or [G017] Brass | 1/2" Pipe | 7/16" Orifice | 2.8 Cv Flow or [G003] Brass | 3/4" Pipe | 3/4" Orifice | 5 Cv Flow or [G043] Brass | 3/4" Pipe | 3/4" Orifice | 5 Cv Flow or [G064] Stainless Steel | 3/8" Pipe | 3/8" Orifice | 1.8 Cv Flow or [G065] Stainless Steel | 3/8" Pipe | 3/8" Orifice | 1.8 Cv Flow or [G066] Stainless Steel | 1/2" Pipe | 7/16" Orifice | 2.8 Cv Flow or [A067] Stainless Steel | 1/2" Pipe | 7/16" Orifice | 2.8 Cv Flow or [G067] Stainless Steel | 1/2" Pipe | 7/16" Orifice | 2.8 Cv Flow or [G063] Stainless Steel | 3/4" Pipe | 5/8" Orifice | 5.4 Cv Flow |
Solenoid Option | None or [EF] Explosionproof or [EF] Explosionproof (G017, G067) or [EF] Explosionproof (A017) or [EF] Explosionproof (A067) or [EF] Explosionproof (G010, G016, G064, G066) or [J] Junction Box or [JB] Factory Assembled Junction Box or [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit or [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (G017, G067) or [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit or [OF] Open Frame Spade and Screw Terminal Solenoids |
Coil Options | None or [HB] Class H - Intermediate Power or [HT] Class H - High Temperature or [HT] Class H - High Temperature (A017) or [KB] Class H - Intermediate Power - Screw Terminals or [KF] Class F - High Temperature - Screw Terminals or [KH] Class H - High Temperature - Screw Terminals or [KP] Class F - Intermediate Power - Screw Terminals or [SC] Class F - High Temperature - DIN Connection or [SD] Class F - Intermediate Power - DIN Connection or [SF] Class F - High Temperature - Spade Terminals or [SP] Class F - Intermediate Power - Spade Terminals or [SS] Class H - Intermediate Power - Spade Terminals or [ST] Class H - High Temperature - Spade Terminals or [SU] Class H - High Temperature - DIN Connection or [SV] Class H - Intermediate Power - DIN Connection or [ZT] Class F - High Temperature - Mini 3 Pin Connector |
Optional Lead Type | Standard or [L] Continuous Leads |
Lead Length | Standard or 18" [D] or 72" [K] |
Optional Seat/Disc/Etc. Material | None or [E] EPDM (Ethylene Propylene) (G003, G010, G013, G016, G043, G063, G065) or [V] FKM (G003, G043, G062, G065, G066, G067) or [J] - CR (Chloroprene, Neoprene) |
Optional Mounting Bracket | Without or [MB] Mounting Bracket |
Optional Manual Operator | None or [MO] Manual Operator (G017, G063) |
Optional Vacuum | Without or [VM] Medium Vacuum or [VH] High Vacuum |
Voltage | AC24/60 or AC110/50 or AC120/60 or AC120/60,110/50 or AC220/50 or AC240/60 or AC240/60,220/50 or DC6/DC or DC12/DC or DC24/DC or DC24/DC (A017) or DC24/DC (A067) or DC120/DC or DC240/DC |
Valve Features | |
---|---|
Valve Brand | Asco |
Pipe Size | 3/8in, 1/2in, 3/4in, 3/8in |
Actuation | Solenoid - Direct Acting |
Body Material | Brass, 304 SS |
Core and Plugnut | 430F SS |
Core Springs | 302 SS |
Core Tube | 305 SS |
Disc Material | NBR |
Enclosure Type | Watertight, Explosionproof & Watertight |
Flow Factor (Cv) | 5.4, 1.8 |
Media | Air-Inert Gas, Natural Gas, Water |
Min Pressure (psi) | 0 |
Max Pressure (psi) | 15 |
Min Temperature °F | 32 |
Max Temperature °F | 125 |
Mounting Position | Any, Vertical & Upright |
Seal Material | NBR |
Shading Coil | Copper, Silver |
Stem | PA |
Valve Function | 2-Way Normally Closed |
