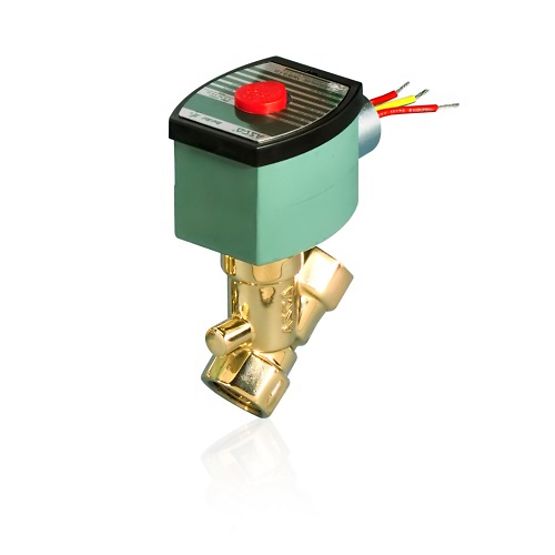

Representative photo. Please check item description for details.
Description
The ASCO Series 030, also known as 8030, is a direct-acting low-pressure solenoid valve with up to 15 psi (1 Bar) maximum differential. Valves available in brass or stainless steel, normally open or normally closed and pipe sizes 3/8-inch thru 3/4. They are widely used for dispensing, collating, vacuum holding, tank draining and gas shutoff applications. The normally open version is well suited for gas venting.
Features
- Ideal for low pressure general service and vacuum applications
- Brass constructions available for fuel gas service in commercial and industrial gas burners
- Gas shutoff model has 2-way normally closed operation
- Gas vent model has 2-way normally open operation
- Most constructions mountable in any position for convenient installation
Specifications
| Asco 8030 NC | |
|---|---|
| Product Specifications | Brass | 3/8" Pipe | 3/8" Orifice | 1.8 Cv Flow, Brass | 3/8" Pipe | 3/8" Orifice | 1.8 Cv Flow, Brass | 1/2" Pipe | 7/16" Orifice | 2.8 Cv Flow, Brass | 1/2" Pipe | 7/16" Orifice | 2.8 Cv Flow, Brass | 3/4" Pipe | 3/4" Orifice | 5 Cv Flow, Brass | 3/4" Pipe | 3/4" Orifice | 5 Cv Flow, Stainless Steel | 3/8" Pipe | 3/8" Orifice | 1.8 Cv Flow, Stainless Steel | 3/8" Pipe | 3/8" Orifice | 1.8 Cv Flow, Stainless Steel | 1/2" Pipe | 7/16" Orifice | 2.8 Cv Flow, Stainless Steel | 1/2" Pipe | 7/16" Orifice | 2.8 Cv Flow, Stainless Steel | 3/4" Pipe | 5/8" Orifice | 5.4 Cv Flow |
| Solenoid Option | None, Explosionproof, Explosionproof (G017, G067), Explosionproof (G010, G016, G064, G066), Panel Mount Type 1 General Purpose Solenoid, Junction Box, Factory Assembled Junction Box, Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (G017, G067), Factory Assembled Junction Box & Explosionproof, 3/4" Conduit, Panel Mount Junction Box, Open Frame Spade and Screw Terminal Solenoids, Panel Mount Spade, Screw and DIN Terminal Solenoids |
| Coil Options | None, Class H - Intermediate Power, Class H - High Temperature, Class H - Intermediate Power - Screw Terminals, Class F - High Temperature - Screw Terminals, Class H - High Temperature - Screw Terminals, Class F - Intermediate Power - Screw Terminals, Class F - High Temperature - DIN Connection, Class F - Intermediate Power - DIN Connection, Class F - High Temperature - Spade Terminals, Class F - Intermediate Power - Spade Terminals, Class H - Intermediate Power - Spade Terminals, Class H - High Temperature - Spade Terminals, Class H - High Temperature - DIN Connection, Class H - Intermediate Power - DIN Connection, Class F - High Temperature - Mini 3 Pin Connector |
| Optional Lead Type | Standard, Continuous Leads |
| Lead Length | Standard, 18" Leads, 72" Leads |
| Optional Seat/Disc/Etc. Material | None, EPDM (Ethylene Propylene), FKM, CR (Chloroprene, Neoprene), Oxygen, Oxygen / FKM |
| Optional Mounting Bracket | Without, Mounting Bracket |
| Optional Manual Operator | None, Manual Operator |
| Optional Vacuum | Without, Medium Vacuum, High Vacuum |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Valve Features | |
|---|---|
| Valve: Body Material | Copper Alloy, Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Core Springs | Stainless Steel |
| Valve: Shading Coil | Copper, Silver |
| Valve: Stem | PA |
| Valve: Enclosure Type | Watertight, Explosionproof & Watertight |
| Valve: Media | Air-Inert Gas, Natural Gas, Water |
| Valve: Function | 2-Way Normally Closed |
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Brand | Asco |
| Valve: Mounting Position | Any, Vertical & Upright |
| Valve: Core Tube | Stainless Steel |
| Valve: Min Temperature °F | 32 |
| Valve: Max Temperature °F | 125 |
| Valve: Flow Factor (Cv) | 5.4, 1.8 |
| Valve: Pressure (psi) | < 20 psi (1.38 bar) |
| Valve: Seal Material | NBR |
| Valve: Disc Material | NBR |
| Valve: Pipe Size | 3/8 in, 1/2 in, 3/4 in, 3/8 in |
