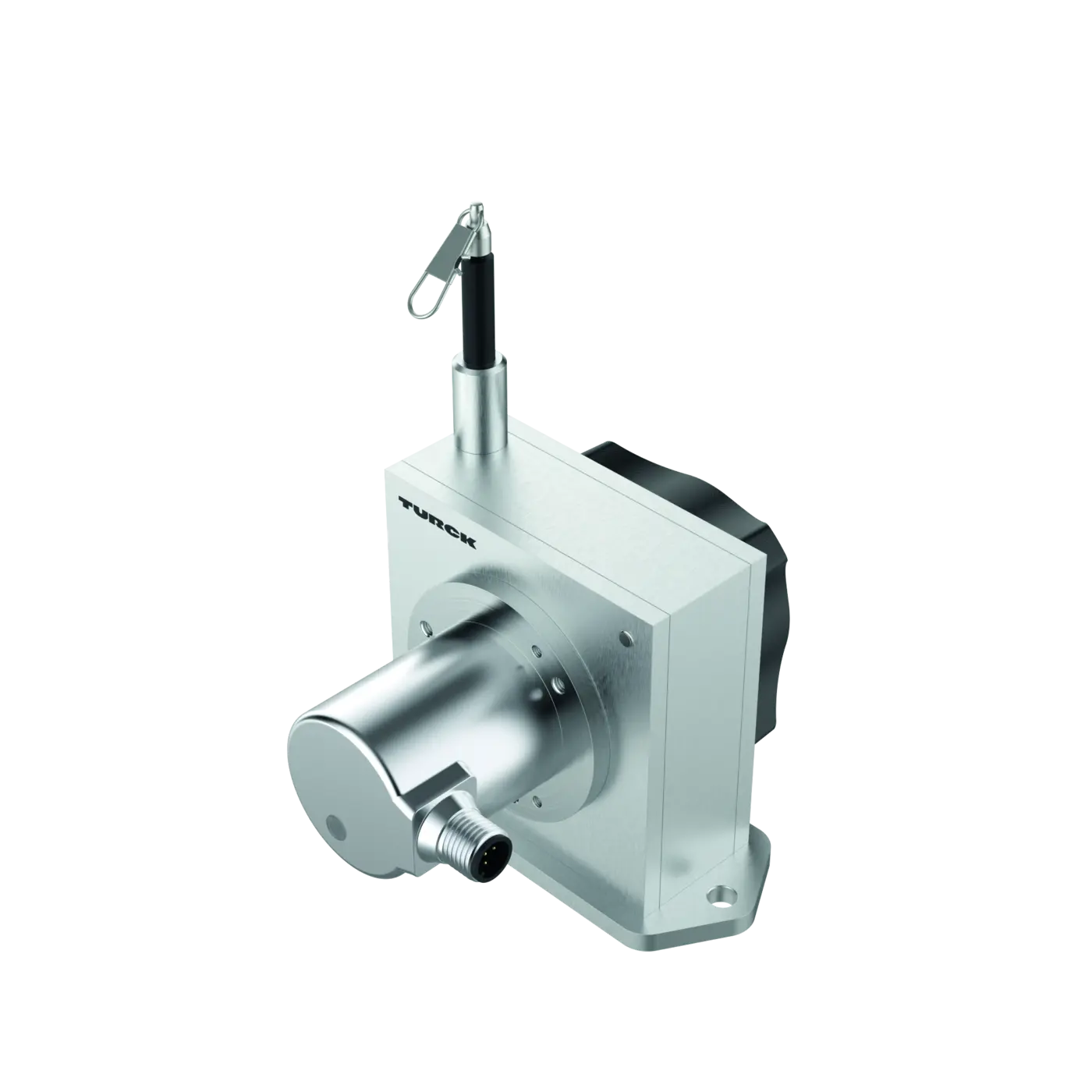

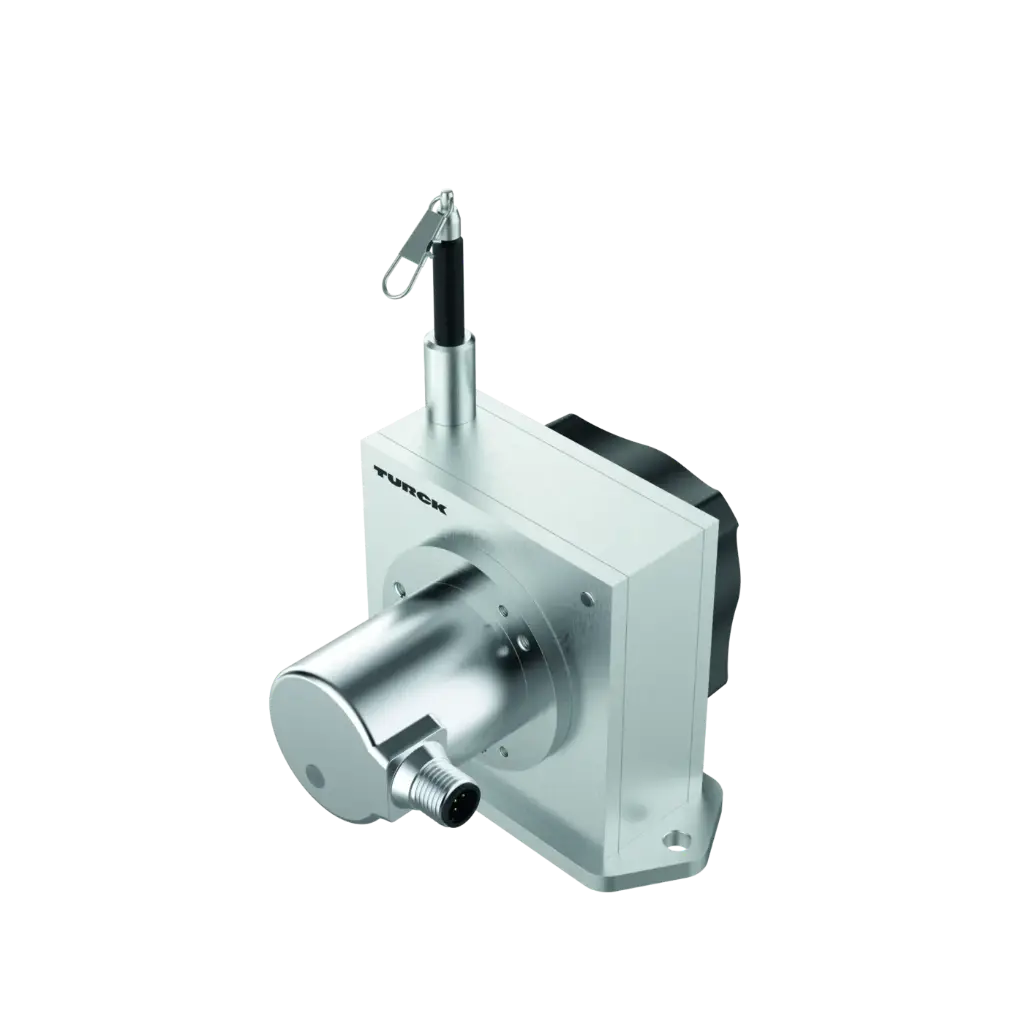

Turck Draw-Wire (DWE-E-2000-110-116-7A-H1151), 2000mm range, 4-20mA output, scaleable, 10-30 VDC input
Draw-Wire Features
- Highly dynamic draw-wire sensor, linear deviation <= 0.05 %
- With permanently installed analog encoder from the REM-116 product series
- Measuring principle: magnetic
- Measuring range can be scaled via teach inputs
- Teach point 1: Ub to pin 4 for > 1 s
- Teach point 2: Ub to pin 5 for > 1 s
- Sensor protection class IP65
- -20…+85 °C
- 10…30 VDC
- Analog output, 4…20 mA
- M12 × 1 connector, 5-pin
Draw-Wire Features
- Highly dynamic draw-wire sensor, linear deviation <= 0.05 %
- With permanently installed analog encoder from the REM-116 product series
- Measuring principle: magnetic
- Measuring range can be scaled via teach inputs
- Teach point 1: Ub to pin 4 for > 1 s
- Teach point 2: Ub to pin 5 for > 1 s
- Sensor protection class IP65
- -20…+85 °C
- 10…30 VDC
- Analog output, 4…20 mA
- M12 × 1 connector, 5-pin
Specifications
| Case Material | Titanium anodized aluminium |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mA, 0-10 VDC |
| Country of Origin | DE |
