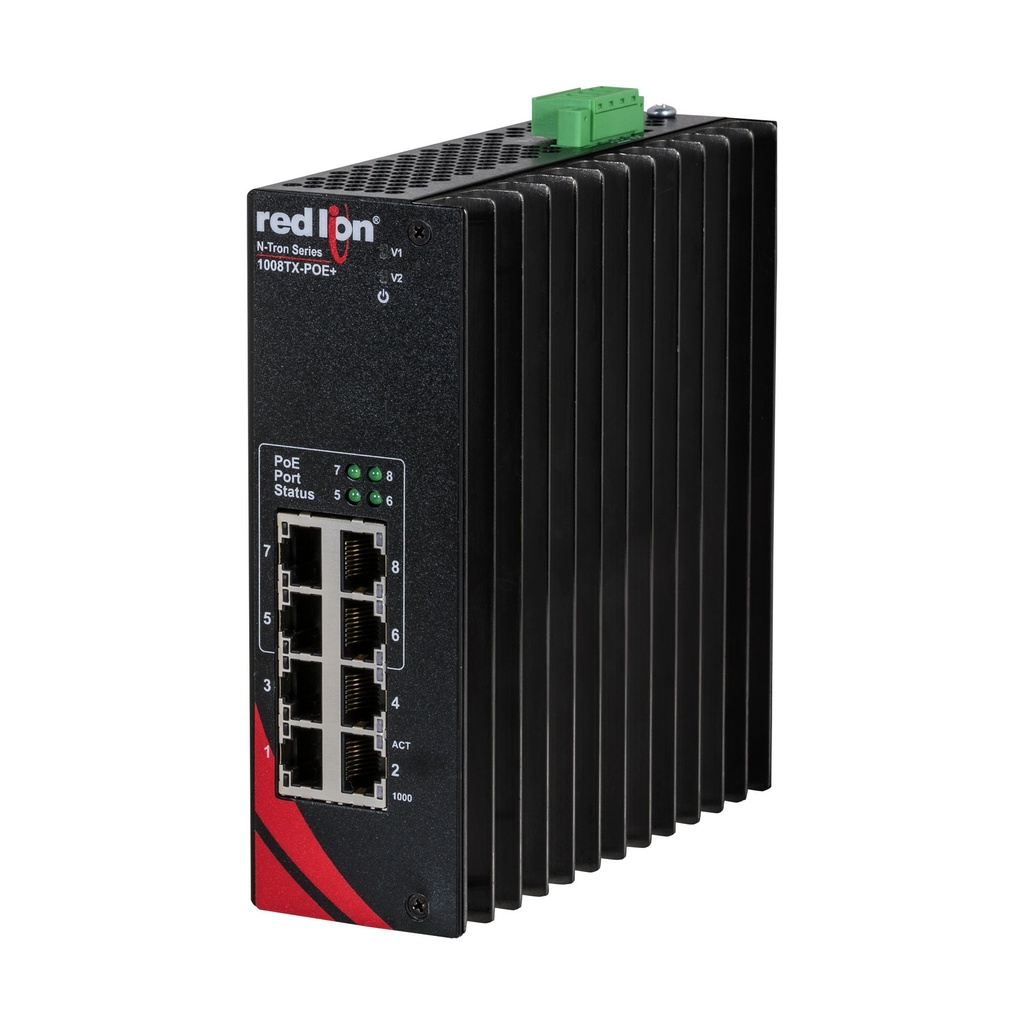

Representative photo. Please check item description for details.
1000 Series, 8-Port, N-Tron Unmanaged Gigabit 1008TX-POE+ Ethernet Switch
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: 1008TX-POE+
Weight: 1.52 lb(s)
On Hand: 0
Red Lion's N-Tron® series 1000 unmanaged Gigabit Ethernet switches offer fiber and copper port configurations, wide operating temperature range support and excellent EMI protection. Housed in a hardened metal DIN-rail mountable enclosure, these industrial switches are ideal for mission-critical data acquisition, security surveillance, control and Ethernet I/O applications.
Features
- Eight 10/100/1000BaseT RJ-45 Ports
- Four IEEE 802.3af/at PoE+ ports for data and up to 30 Watts of power
- Unmanaged Operation
- Extended Environmental Specifications
- -40° to 80°C Operating Temperature
- Redundant Power Inputs (22-49 VDC)
- Boosts power to meet PoE+ output requirements
- Compact Size, Smaller Footprint
- IEEE 802.3, 802.3u, and 802.3ab Compliance
- >2M Hours MTBF
- Supports Full/Half Duplex Operation
- Up to 16.0 Gb/s Maximum Throughput
- MDIX Auto Cable Sensing (RJ-45)
- Auto Sensing Speed and Flow Control
- Full Wire Speed Communications
- Supports up to 8,000 MAC Addresses
- Jumbo Frame Support
- Store-and-forward Technology
- Redundant Power Inputs (10-49 VDC)
- LED Link Activity Indicators
- LED PoE Status Indicators
- LED Power Fault Indicators
1000 Series, 8-Port, N-Tron Unmanaged Gigabit 1008TX-POE+ Ethernet Switch
Brand:Red Lion
Min Operating Temperature:-40 °C
Max Operating Temperature:80 °C
No. Ports:8
10/100/1000 Ports:8/4 PoE+
Specifications
| Brand | Red Lion |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 80 °C |
| No. Ports | 8 |
| 10/100/1000 Ports | 8/4 PoE+ |
