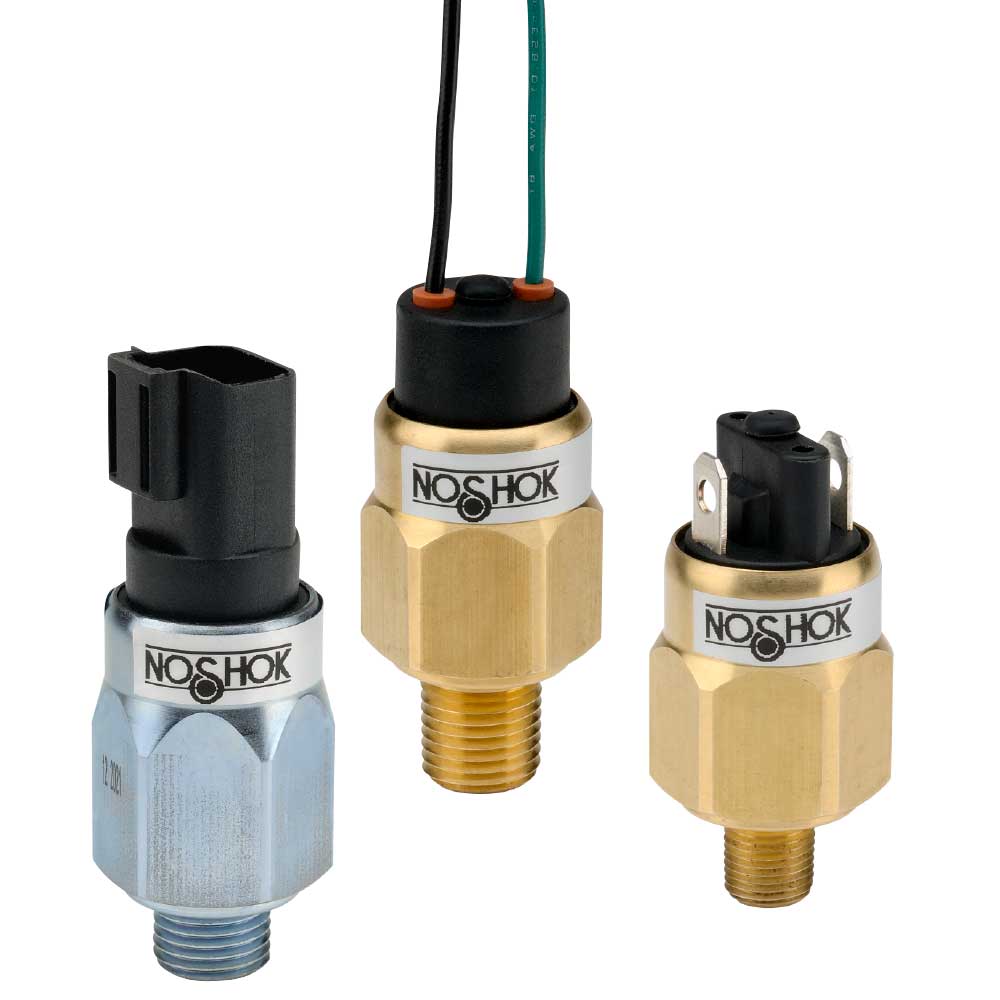

100 Series Mechanical Compact High Pressure Switch, 125 to 600 psig, 1/8" NPT-Male, SPST, N.O., Weatherpack Tower, 2-Pin Male
Manufacturer: Noshok Inc
Mfg Product Code: 100H-1-1-125/600-97
Weight: 0.2 lb(s)
100H Series Creep Action, Zinc-Nickel Pl Steel Wet Mat, NBR Diaph, 1 SPST, NO, 1/8" NPT Male, 125 to 600 psig (9,000 psig), Weatherpack Tower, 2-Pin Male Press. Switch
- Switch adjustment ranges from vacuum through 6,000 psi depending on model
- Standard Brass with NBR diaphragm wetted parts
- SPST creep action switch with Silver-plated contacts
- CE compliant to suppress Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD)
Applications:
- Hydraulics & pneumatics
- Pumps & compressors
- Tank monitoring
- Leak detection
- Water management
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
100 Series Mechanical Compact High Pressure Switch, 125 to 600 psig, 1/8" NPT-Male, SPST, N.O., Weatherpack Tower, 2-Pin Male
100H Series Creep Action, Zinc-Nickel Pl Steel Wet Mat, NBR Diaph, 1 SPST, NO, 1/8" NPT Male, 125 to 600 psig (9,000 psig), Weatherpack Tower, 2-Pin Male Press. Switch
Brand_Name:Noshok
Measurement Maximum:600.0
Process Connection Type:NPT-Male
Pressure Range:125 psig to 600 psig (9,000 psig)
Min Operating Pressure:125 psig
Max Operating Pressure:600 psig
Min Operating Temperature:-13 °F
Product Unit of Measure:psig
Max Operating Temperature:185 °F
Process Connection Size:1/8"
Case Material:Plated Steel
Wetted Material:Zinc-Nickel Plated Steel, NBR diaphragm
Measurement Minimum:125
Ingress Protection:IP69
Switch Function:SPST, N.O.
Electrical Connector Type:Weatherpack Tower, 2-Pin Male
Specifications
| Brand_Name | Noshok |
| Measurement Maximum | 600.0 |
| Process Connection Type | NPT-Male |
| Pressure Range | 125 psig to 600 psig (9,000 psig) |
| Min Operating Pressure | 125 psig |
| Max Operating Pressure | 600 psig |
| Min Operating Temperature | -13 °F |
| Product Unit of Measure | psig |
| Max Operating Temperature | 185 °F |
| Process Connection Size | 1/8" |
| Case Material | Plated Steel |
| Wetted Material | Zinc-Nickel Plated Steel, NBR diaphragm |
| Measurement Minimum | 125 |
| Ingress Protection | IP69 |
| Switch Function | SPST, N.O. |
| Electrical Connector Type | Weatherpack Tower, 2-Pin Male |
