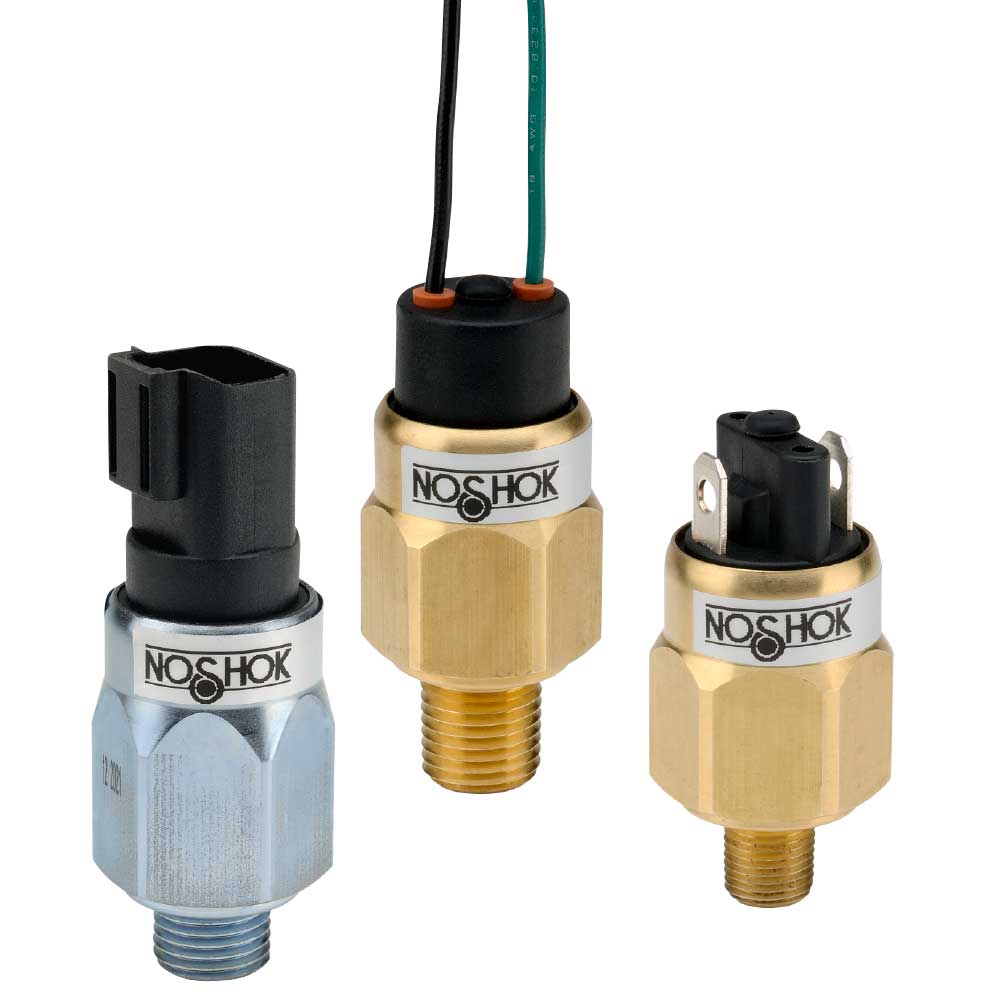

100 Series Mechanical Compact High Pressure Switch, 3,000 to 6,000 psig, 1/8" NPT-Male, SPST, N.O., Weatherpack Tower, 2-Pin Male
Manufacturer: Noshok Inc
Mfg Product Code: 100H-1-1-3000/6000-97
Weight: 0.2 lb(s)
100H Series Creep Action, Zinc-Nickel Pl Steel Wet Mat, NBR Diaph, 1 SPST, NO, 1/8" NPT Male, 3,000 to 6,000 psig (9,000 psig), Weatherpack Tower, 2-Pin Male Press. Switch
- Switch adjustment ranges from vacuum through 6,000 psi depending on model
- Standard Brass with NBR diaphragm wetted parts
- SPST creep action switch with Silver-plated contacts
- CE compliant to suppress Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD)
Applications:
- Hydraulics & pneumatics
- Pumps & compressors
- Tank monitoring
- Leak detection
- Water management
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation. Gauge failures determined to be caused by over-range, incompatibility with environment or product media and abuse will not be considered under this warranty. NOSHOK, Inc. will, at its discretion, repair or replace the working parts of the damaged gauge without cost to the customer.
In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
100 Series Mechanical Compact High Pressure Switch, 3,000 to 6,000 psig, 1/8" NPT-Male, SPST, N.O., Weatherpack Tower, 2-Pin Male
100H Series Creep Action, Zinc-Nickel Pl Steel Wet Mat, NBR Diaph, 1 SPST, NO, 1/8" NPT Male, 3,000 to 6,000 psig (9,000 psig), Weatherpack Tower, 2-Pin Male Press. Switch
Brand_Name:Noshok
Measurement Maximum:6000.0
Process Connection Type:NPT-Male
Pressure Range:3,000 psig to 6,000 psig (9,000 psig)
Min Operating Pressure:3,000 psig
Max Operating Pressure:6000 psig
Min Operating Temperature:-13 °F
Product Unit of Measure:psig
Max Operating Temperature:185 °F
Process Connection Size:1/8"
Case Material:Plated Steel
Wetted Material:Zinc-Nickel Plated Steel, NBR diaphragm
Measurement Minimum:3000
Ingress Protection:IP69
Switch Function:SPST, N.O.
Electrical Connector Type:Weatherpack Tower, 2-Pin Male
Specifications
| Brand_Name | Noshok |
| Measurement Maximum | 6000.0 |
| Process Connection Type | NPT-Male |
| Pressure Range | 3,000 psig to 6,000 psig (9,000 psig) |
| Min Operating Pressure | 3,000 psig |
| Max Operating Pressure | 6000 psig |
| Min Operating Temperature | -13 °F |
| Product Unit of Measure | psig |
| Max Operating Temperature | 185 °F |
| Process Connection Size | 1/8" |
| Case Material | Plated Steel |
| Wetted Material | Zinc-Nickel Plated Steel, NBR diaphragm |
| Measurement Minimum | 3000 |
| Ingress Protection | IP69 |
| Switch Function | SPST, N.O. |
| Electrical Connector Type | Weatherpack Tower, 2-Pin Male |
