Representative photo. Please check item description for details.

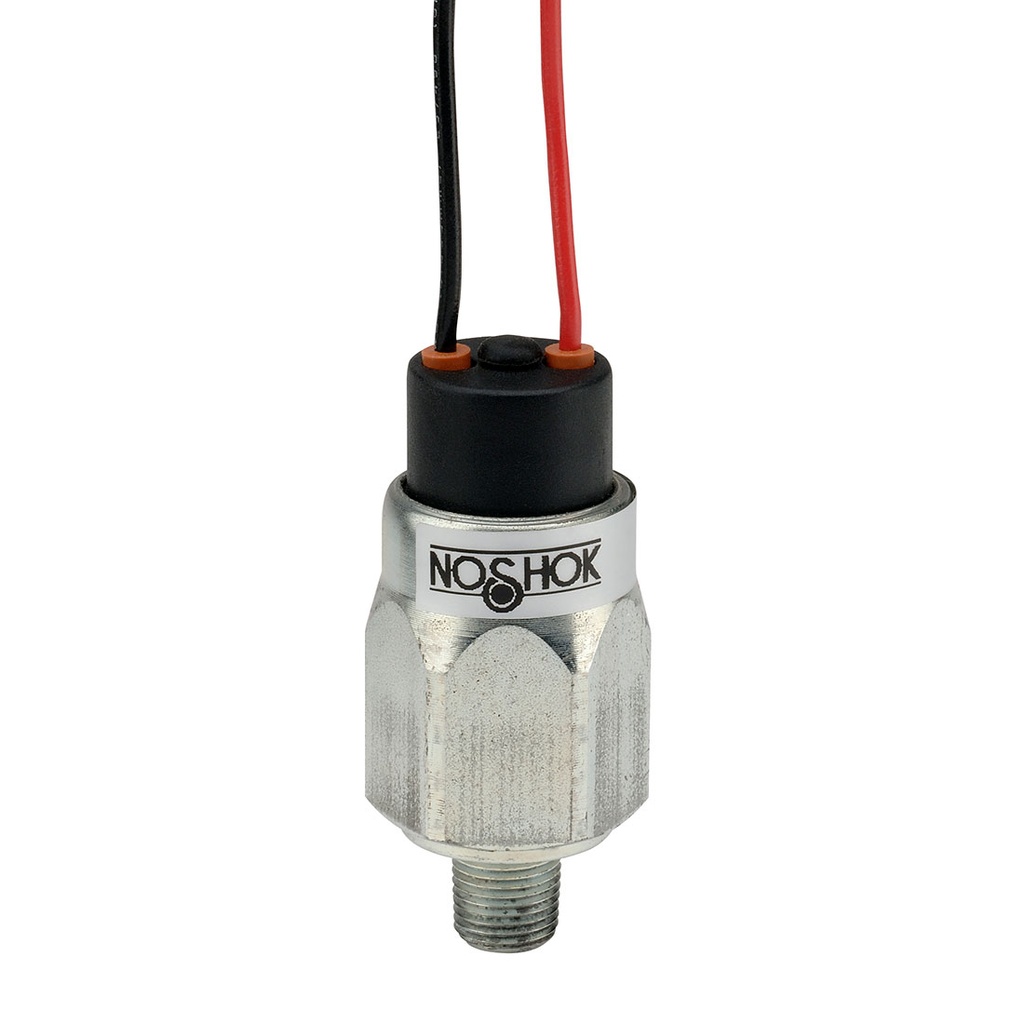

100 Series Mechanical Compact High Pressure Switch, 300 to 2,500 psig, 1/8" NPT-Male, SPST, N.C., 18" Flying Leads

https://www.branom.com/web/image/product.template/498531/image_1920?unique=6580a9a
(0 review)

Manufacturer: Noshok Inc

Mfg Product Code: 100H-2-1-300/2500-77

Weight: 0.2 lb(s)

On Hand: 0

100H Series Creep Action, Zinc-Nickel Pl Steel Wet Mat, NBR Diaph, 1 SPST, NC, 1/8" NPT Male, 300 to 2,500 psig (9,000 psig), 18" Flying Leads Press. Switch

  • Switch adjustment ranges from vacuum through 6,000 psi depending on model
  • Standard Brass with NBR diaphragm wetted parts
  • SPST creep action switch with Silver-plated contacts
  • CE compliant to suppress Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD)

Applications:

  • Hydraulics & pneumatics
  • Pumps & compressors
  • Tank monitoring
  • Leak detection
  • Water management

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

58.17 58.17 USD 58.17

58.17

Not Available For Sale

  • Brand
  • Measurement Maximum
  • Process Connection Type
  • Pressure Range
  • Min Operating Pressure
  • Max Operating Pressure
  • Min Operating Temperature
  • Product Unit of Measure
  • Max Operating Temperature
  • Process Connection Size
  • Case Material
  • Wetted Material
  • Measurement Minimum
  • Ingress Protection
  • Switch Function
  • Electrical Connector Type
  • Cable Length (ft)
  • Cord/Cable Length

This combination does not exist.


Product Datasheets

Datasheet 1

100 Series Mechanical Compact High Pressure Switch, 300 to 2,500 psig, 1/8" NPT-Male, SPST, N.C., 18" Flying Leads

  • Brand
  • Measurement Maximum
  • Process Connection Type
  • Pressure Range
  • Min Operating Pressure
  • Max Operating Pressure
  • Min Operating Temperature
  • Product Unit of Measure
  • Max Operating Temperature
  • Process Connection Size
  • Case Material
  • Wetted Material
  • Measurement Minimum
  • Ingress Protection
  • Switch Function
  • Electrical Connector Type
  • Cable Length (ft)
  • Cord/Cable Length

58.17 58.17 USD 58.17

58.17

Not Available For Sale

This combination does not exist.


100H Series Creep Action, Zinc-Nickel Pl Steel Wet Mat, NBR Diaph, 1 SPST, NC, 1/8" NPT Male, 300 to 2,500 psig (9,000 psig), 18" Flying Leads Press. Switch


Brand:Noshok
Measurement Maximum:2500.0
Process Connection Type:NPT-Male
Pressure Range:300 psig to 2,500 psig (9,000 psig)
Min Operating Pressure:300 psig
Max Operating Pressure:2500 psig
Min Operating Temperature:-13 °F
Product Unit of Measure:psig
Max Operating Temperature:185 °F
Process Connection Size:1/8"
Case Material:Plated Steel
Wetted Material:Zinc-Nickel Plated Steel, NBR diaphragm
Measurement Minimum:0
Ingress Protection:IP69
Switch Function:SPST, N.C.
Electrical Connector Type:Flying Leads
Cable Length (ft):1.5
Cord/Cable Length:18 in


Specifications

Brand Noshok
Measurement Maximum 2500.0
Process Connection Type NPT-Male
Pressure Range 300 psig to 2,500 psig (9,000 psig)
Min Operating Pressure 300 psig
Max Operating Pressure 2500 psig
Min Operating Temperature -13 °F
Product Unit of Measure psig
Max Operating Temperature 185 °F
Process Connection Size 1/8"
Case Material Plated Steel
Wetted Material Zinc-Nickel Plated Steel, NBR diaphragm
Measurement Minimum 0
Ingress Protection IP69
Switch Function SPST, N.C.
Electrical Connector Type Flying Leads
Cable Length (ft) 1.5
Cord/Cable Length 18 in
