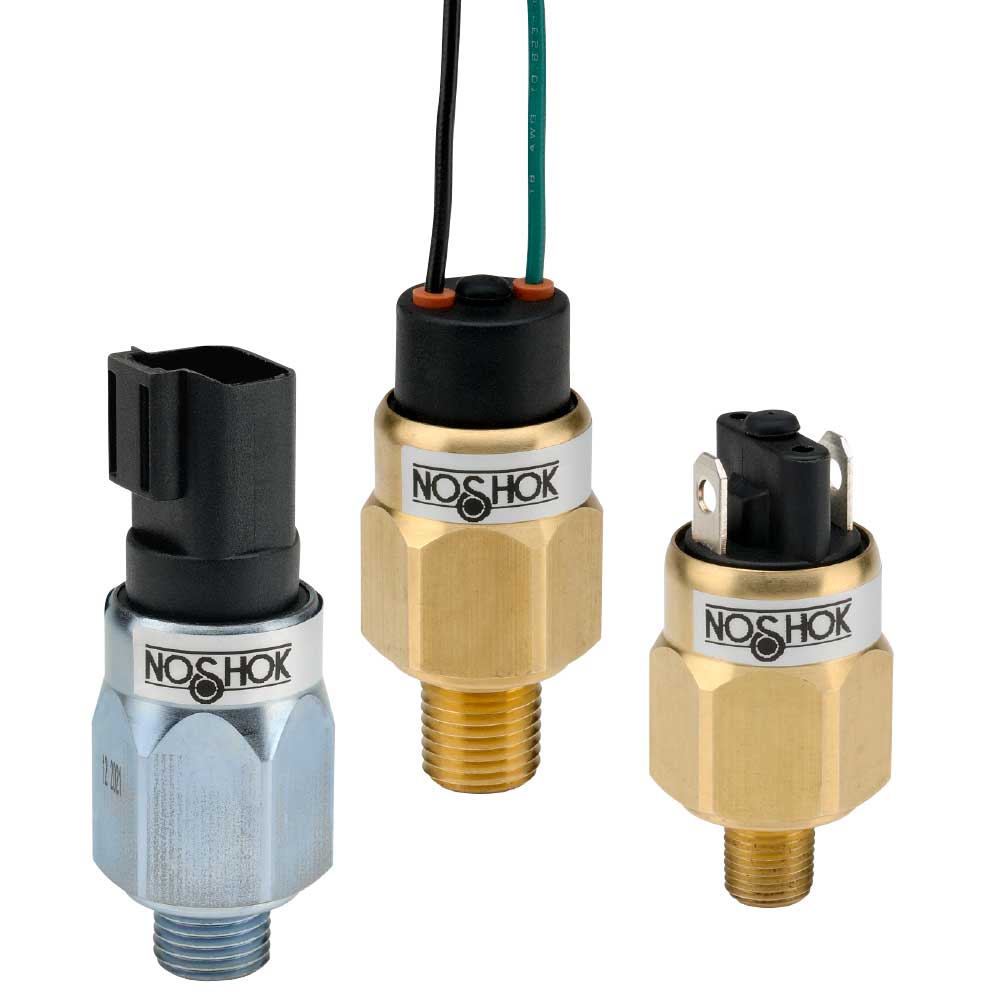

Representative photo. Please check item description for details.

100 Series Mechanical Compact Low Pressure Switch, 15 to 100 psig, 1/8" NPT-Male, SPST, N.O., Weatherpack Shroud, 2-Pin Male

https://www.branom.com/web/image/product.template/498551/image_1920?unique=80ca2e4
(0 review)

Manufacturer: Noshok Inc

Mfg Product Code: 100L-1-1-15/100-99

Weight: 0.2 lb(s)

On Hand: 0

100L Series Creep Action, Brass Wet Mat, Polyimide Diaph, 1 SPST, NO, 1/8" NPT Male, 15 to 100 psig (350 psig), Weatherpack Shroud, 2-Pin Male Press. Switchf

  • Switch adjustment ranges from vacuum through 6,000 psi depending on model
  • Standard Brass with NBR diaphragm wetted parts
  • SPST creep action switch with Silver-plated contacts
  • CE compliant to suppress Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD)

Applications:

  • Hydraulics & pneumatics
  • Pumps & compressors
  • Tank monitoring
  • Leak detection
  • Water management

These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation. Gauge failures determined to be caused by over-range, incompatibility with environment or product media and abuse will not be considered under this warranty. NOSHOK, Inc. will, at its discretion, repair or replace the working parts of the damaged gauge without cost to the customer.

In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.

66.06 66.06 USD 66.06

66.06

Not Available For Sale

  • Brand
  • Product Unit of Measure
  • Process Connection Size_
  • Measurement Maximum
  • Process Connection Type
  • Pressure Range
  • Case Material
  • Min Operating Pressure
  • Max Operating Pressure
  • Min Operating Temperature
  • Max Operating Temperature
  • Wetted Material
  • Measurement Minimum
  • Ingress Protection
  • Switch Function
  • Electrical Connector Type

This combination does not exist.


Product Datasheets

Datasheet 1

100 Series Mechanical Compact Low Pressure Switch, 15 to 100 psig, 1/8" NPT-Male, SPST, N.O., Weatherpack Shroud, 2-Pin Male

  • Brand
  • Product Unit of Measure
  • Process Connection Size_
  • Measurement Maximum
  • Process Connection Type
  • Pressure Range
  • Case Material
  • Min Operating Pressure
  • Max Operating Pressure
  • Min Operating Temperature
  • Max Operating Temperature
  • Wetted Material
  • Measurement Minimum
  • Ingress Protection
  • Switch Function
  • Electrical Connector Type

66.06 66.06 USD 66.06

66.06

Not Available For Sale

This combination does not exist.


100L Series Creep Action, Brass Wet Mat, Polyimide Diaph, 1 SPST, NO, 1/8" NPT Male, 15 to 100 psig (350 psig), Weatherpack Shroud, 2-Pin Male Press. Switchf


Brand:Noshok
Product Unit of Measure:psig
Process Connection Size_:1/8"
Measurement Maximum:100.0
Process Connection Type:NPT-Male
Pressure Range:15 psig to 100 psig (350 psig)
Case Material:Brass
Min Operating Pressure:15 psig
Max Operating Pressure:100 psig
Min Operating Temperature:-13 °F
Max Operating Temperature:185 °F
Wetted Material:Brass, Polyimide Diaphragm
Measurement Minimum:15
Ingress Protection:IP69
Switch Function:SPST, N.O.
Electrical Connector Type:Weatherpack Shroud, 2-Pin Male


Specifications

Brand Noshok
Product Unit of Measure psig
Process Connection Size_ 1/8"
Measurement Maximum 100.0
Process Connection Type NPT-Male
Pressure Range 15 psig to 100 psig (350 psig)
Case Material Brass
Min Operating Pressure 15 psig
Max Operating Pressure 100 psig
Min Operating Temperature -13 °F
Max Operating Temperature 185 °F
Wetted Material Brass, Polyimide Diaphragm
Measurement Minimum 15
Ingress Protection IP69
Switch Function SPST, N.O.
Electrical Connector Type Weatherpack Shroud, 2-Pin Male
