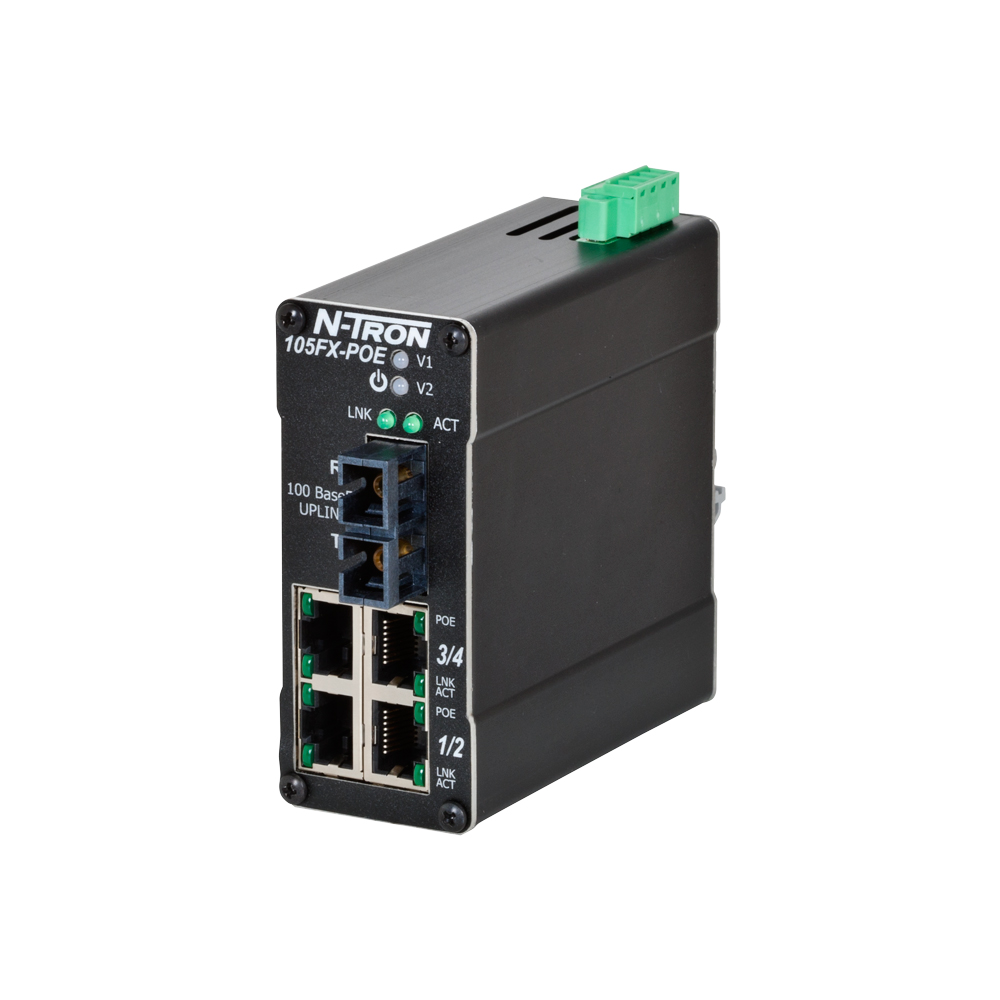

100 PoE Series, 5-Port, N-Tron 105FX Unmanaged Industrial MDR POE Switch, SC 2km

https://www.branom.com/web/image/product.template/517732/image_1920?unique=6580a9a
(0 review)

Manufacturer: Red Lion Controls, Inc.

Mfg Product Code: 105FX-SC-POE-MDR

Weight: 1.7 lb(s)

On Hand: 0

Red Lion's N-Tron series 100-POE products feature industry-standard IEEE 802.3af PoE, wide operating temperature ranges and excellent EMI protection. Our 100-POE unmanaged products offer a wide range of options including PoE switches, injectors and splitters that are cost effective and compact in a metal DIN-rail mountable enclosure that can expand your industrial Ethernet network exponentially.

Features

  • Designed to Transmit Power, along with data over an Ethernet Network
  • Ideal for PoE Cameras, Wireless Access Point, or other PoE Devices
  • Four 10/100BaseTX RJ-45 Ports (4 PoE Ports)
  • One 100BaseFX multimode Port with SC Connectors
  • Extended Environmental Specifications
    • -40° to 85°C Operating Temperature
  • Compact, Space Saving Package
  • Full IEEE 802.3 and 802.3af Compliance
  • Unmanaged Operation
  • Extended Environmental Specifications
  • Unmanaged Operation
  • Automatic Detection of Connected PoE Devices
  • Support for Full/Half Duplex Operation
  • Auto-sensing Duplex, Speed, and MDIX
  • Up to 1.0 Gb/s Maximum Throughput
  • Full Wire Speed Communications
  • Supports 15.4 Watts per port (13 Watts at the PD)
  • Redundant Power Inputs (46-49 VDC)
  • Power Fault Status LED
  • LED Link/Activity Status Indication
  • LED PoE Status Indication
  • Hardened Metal DIN-Rail Enclosure
  • Metal DIN-Rail Clip Included

574.00 574.0 USD 574.00

574.00

Not Available For Sale

  • Brand
  • Manufacturer Product Family
  • Min Operating Temperature
  • Max Operating Temperature
  • Mounting Options
  • Case Material
  • Ethernet Connector Type
  • No. Ports
  • 100 Fiber Ports
  • Switch Type
  • Standards

This combination does not exist.


Product Datasheets

Datasheet 1

100 PoE Series, 5-Port, N-Tron 105FX Unmanaged Industrial MDR POE Switch, SC 2km

  • Brand
  • Manufacturer Product Family
  • Min Operating Temperature
  • Max Operating Temperature
  • Mounting Options
  • Case Material
  • Ethernet Connector Type
  • No. Ports
  • 100 Fiber Ports
  • Switch Type
  • Standards

574.00 574.0 USD 574.00

574.00

Not Available For Sale

This combination does not exist.


Brand:Red Lion
Manufacturer Product Family:100 PoE Series Ethernet Switches
Min Operating Temperature:-40 °C
Max Operating Temperature:85 °C
Mounting Options:DIN Rail
Case Material:Metal
Ethernet Connector Type:SC
No. Ports:5
100 Fiber Ports:1
Switch Type:PoE Switch
Standards:IEEE802.3af


Specifications

Brand Red Lion
Manufacturer Product Family 100 PoE Series Ethernet Switches
Min Operating Temperature -40 °C
Max Operating Temperature 85 °C
Mounting Options DIN Rail
Case Material Metal
Ethernet Connector Type SC
No. Ports 5
100 Fiber Ports 1
Switch Type PoE Switch
Standards IEEE802.3af
