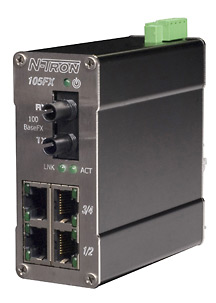

100 Series, 5-Port, N-Tron 105FX Unmanaged Industrial Ethernet Switch, ST 40km
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: 105FXE-ST-40
Weight: 1.7 lb(s)
On Hand: 0
Red Lion's N-Tron® series 100 unmanaged Ethernet switches offer an array of port configurations and feature a wide operating temperature range. The budget-saving 100 line provides excellent EMI protection and offer hardened metal DIN-rail mountable enclosures to expand your industrial Ethernet network.
Features
- Unmanaged Plug and Play Operation
- 5 Port Industrial Ethernet Switch
- Four 10/100BaseTX RJ-45 Ports
- One 100BaseFX Singlemode 40km Fiber Port with ST Connectors
- Compact Size, Small Footprint
- IEEE 802.3 Compliance
- Extended Environmental Specifications
- -40° to 70°C Operating Temperature
- >2M Hours MTBF
- RJ-45 Ports Support Full/Half Duplex Operation
- ESD and Surge Protection on all Built-in Ports
- Auto Sensing Speed and Flow Control
- Up to 1.0 Gb/s Maximum Throughput
- Store-and-forward Technology
- LED Link/Activity Status Indication
- Redundant Power Inputs (10-30 VDC)
- Hardened Metal DIN-Rail Enclosure
100 Series, 5-Port, N-Tron 105FX Unmanaged Industrial Ethernet Switch, ST 40km
Brand:Red Lion
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Mounting Options:DIN Rail
Case Material:Metal
Input Voltage:10-30 VDC
Ingress Protection:IP30
Fiber Type:Singlemode
Ethernet Connector Type:ST
No. Ports:5
10/100 Ports:4
100 Fiber Ports:1
Distance Rating:40 km
Specifications
| Brand | Red Lion |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Mounting Options | DIN Rail |
| Case Material | Metal |
| Input Voltage | 10-30 VDC |
| Ingress Protection | IP30 |
| Fiber Type | Singlemode |
| Ethernet Connector Type | ST |
| No. Ports | 5 |
| 10/100 Ports | 4 |
| 100 Fiber Ports | 1 |
| Distance Rating | 40 km |
