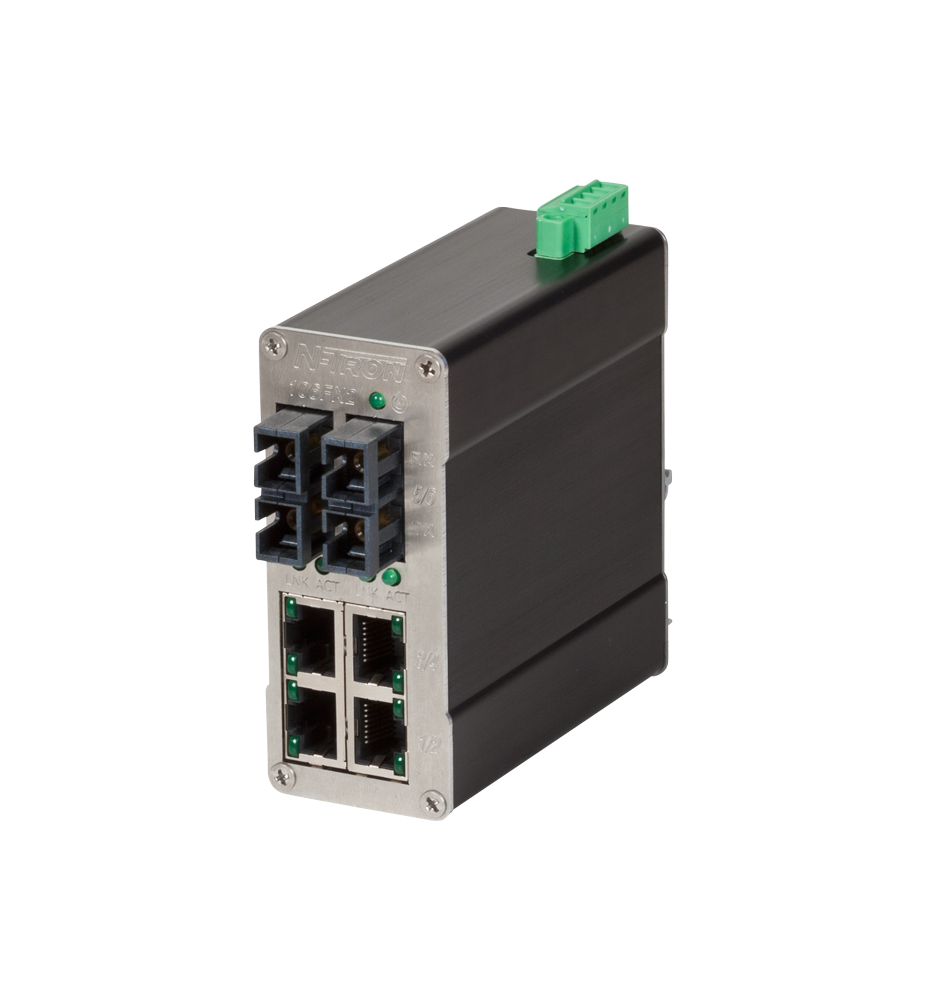

100 Series, 6-Port, N-Tron 106FX2 MDR Unmanaged Industrial Ethernet Switch, SC 15km

https://www.branom.com/web/image/product.template/515774/image_1920?unique=6580a9a
(0 review)

Manufacturer: Red Lion Controls, Inc.

Mfg Product Code: 106FXE2-SC-15-MDR

Weight: 1.6 lb(s)

Usually Ships Within 1 - 2 Weeks

Red Lion's N-Tron® series 100 unmanaged Ethernet switches offer an array of port configurations and feature a wide operating temperature range. The budget-saving 100 line provides excellent EMI protection and offer hardened metal DIN-rail mountable enclosures to expand your industrial Ethernet network.

Features

  • Unmanaged Plug and Play Operation
  • 6 Port Industrial Ethernet Switch
    • Four 10/100BaseTX RJ-45 Ports
    • Two 100BaseFX Singlemode 15km Fiber Ports with SC Connectors
  • Compact Size, Small Footprint
  • IEEE 802.3 Compliance
  • Extended Environmental Specifications
    • -40° to 70°C Operating Temperature
    • >2M Hours MTBF
  • RJ-45 Ports Support Full/Half Duplex Operation
  • Auto Sensing Speed and Flow Control
  • Up to 1.2 Gb/s Maximum Throughput
  • Store-and-forward Technology
  • LED Link/Activity Status Indication
  • Redundant Power Inputs (10-30 VDC)
  • Hardened Metal DIN-Rail Enclosure
  • Metal DIN-Rail Clip Included

769.00 769.0 USD 769.00

769.00

Not Available For Sale

  • Brand_Name
  • Min Operating Temperature
  • Max Operating Temperature
  • Mounting Options
  • Case Material
  • Input Voltage
  • Ingress Protection
  • Fiber Type
  • Ethernet Connector Type
  • No. Ports
  • 10/100 Ports
  • 100 Fiber Ports
  • Distance Rating

This combination does not exist.


Product Datasheets

Datasheet 1

100 Series, 6-Port, N-Tron 106FX2 MDR Unmanaged Industrial Ethernet Switch, SC 15km

  • Brand_Name
  • Min Operating Temperature
  • Max Operating Temperature
  • Mounting Options
  • Case Material
  • Input Voltage
  • Ingress Protection
  • Fiber Type
  • Ethernet Connector Type
  • No. Ports
  • 10/100 Ports
  • 100 Fiber Ports
  • Distance Rating

769.00 769.0 USD 769.00

769.00

Not Available For Sale

This combination does not exist.


Brand_Name:Red Lion
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Mounting Options:DIN Rail
Case Material:Metal
Input Voltage:10-30 VDC
Ingress Protection:IP30
Fiber Type:Singlemode
Ethernet Connector Type:SC
No. Ports:6
10/100 Ports:4
100 Fiber Ports:2
Distance Rating:15 km


Specifications

Brand_Name Red Lion
Min Operating Temperature -40 °C
Max Operating Temperature 70 °C
Mounting Options DIN Rail
Case Material Metal
Input Voltage 10-30 VDC
Ingress Protection IP30
Fiber Type Singlemode
Ethernet Connector Type SC
No. Ports 6
10/100 Ports 4
100 Fiber Ports 2
Distance Rating 15 km
