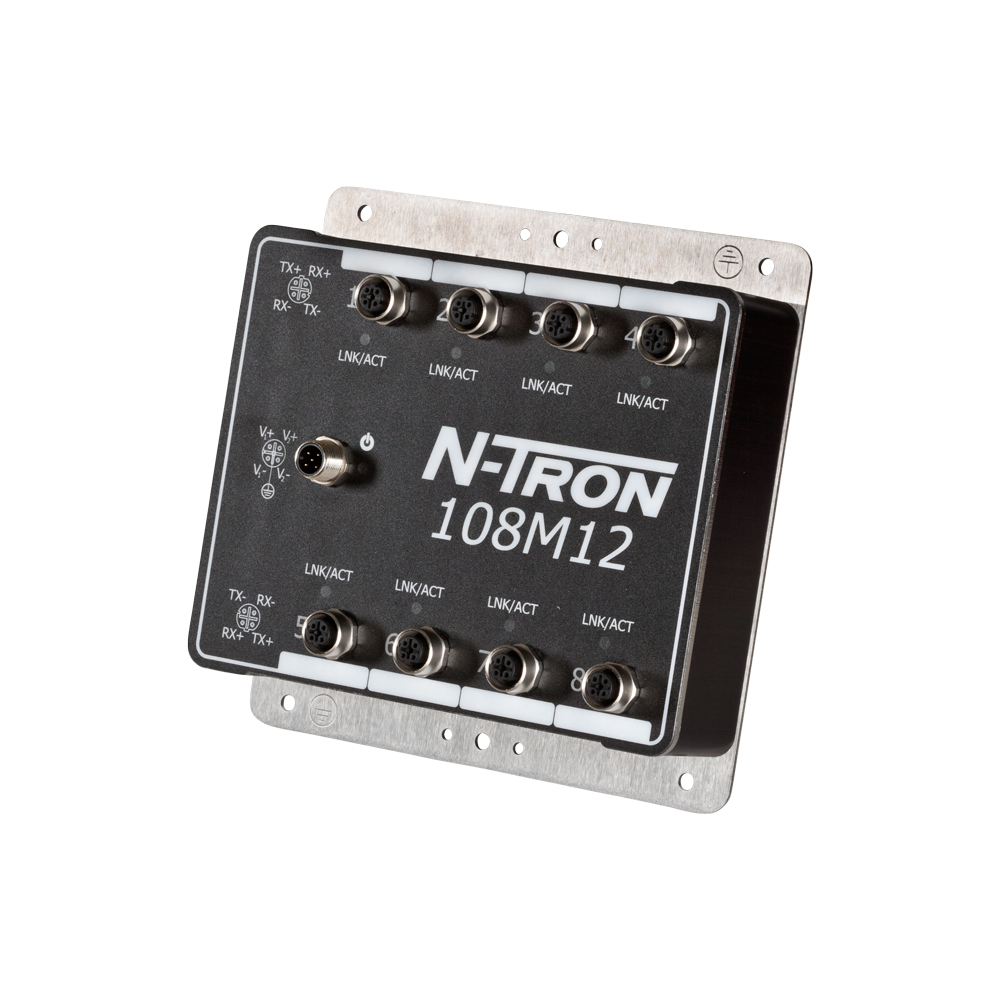

100 Series, 8-Port, N-Tron 108M12 HV IP67 Rated Unmanaged Industrial Ethernet Switch

https://www.branom.com/web/image/product.template/515790/image_1920?unique=e6b1a74
(0 review)

Manufacturer: Red Lion Controls, Inc.

Mfg Product Code: 108M12-HV

Weight: 3.0 lb(s)

On Hand: 0

Red Lion's N-Tron® series 100 unmanaged Ethernet switches offer an array of port configurations and feature a wide operating temperature range. The budget-saving 100 line provides excellent EMI protection and offer hardened metal DIN-rail mountable enclosures to expand your industrial Ethernet network.

Features

  • Unmanaged Operation
  • IP67 Rated Hardened Metal Enclosure
    • Bulkhead Mountable (Optional DIN-Rail mounting)
    • Dustproof
    • Protection Against low/high Pressure Water Jets
    • Temporary Immersion in Water
  • Eight 10/100BaseTX Ports
    • M12 D-Coded Female 4 Pin Connectors
  • Extended Environmental Specifications
    • -40° to 70°C Operating Temperature
    • >2M Hours MTBF
  • Store-and-forward Technology
  • Supports Full/Half Duplex Operation
  • Up to 1.6 Gb/s Maximum Throughput
  • MDIX Auto Sensing Cable
  • Auto Sensing Speed and Flow Control
  • Full Wire Speed Communications
  • Redundant Power Inputs (10-30 VDC)
    • Order Model #108M12 for 10-30 VDC Operation
    • Order Model #108M12-HV for 10-60 VDC Operation
  • ESD Protection Diodes on All Ports
  • Surge Protection Diodes on Power Inputs
  • LED Link/Activity Status Indication

823.00 823.0 USD 823.00

823.00

Not Available For Sale

  • Brand
  • Min Operating Temperature
  • Max Operating Temperature
  • No. Ports
  • 10/100 Ports

This combination does not exist.


Product Datasheets

Datasheet 1

100 Series, 8-Port, N-Tron 108M12 HV IP67 Rated Unmanaged Industrial Ethernet Switch

  • Brand
  • Min Operating Temperature
  • Max Operating Temperature
  • No. Ports
  • 10/100 Ports

823.00 823.0 USD 823.00

823.00

Not Available For Sale

This combination does not exist.


Brand:Red Lion
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
No. Ports:8
10/100 Ports:8


Specifications

Brand Red Lion
Min Operating Temperature -40 °C
Max Operating Temperature 70 °C
No. Ports 8
10/100 Ports 8
