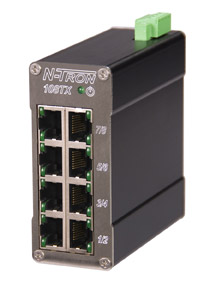

Representative photo. Please check item description for details.
100 Series, 8-Port, N-Tron 108TX HV Unmanaged Industrial Ethernet Switch
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: 108TX-HV
Weight: 1.7 lb(s)
On Hand: 0
Red Lion's N-Tron® series 100 unmanaged Ethernet switches offer an array of port configurations and feature a wide operating temperature range. The budget-saving 100 line provides excellent EMI protection and offer hardened metal DIN-rail mountable enclosures to expand your industrial Ethernet network.
Features
- Unmanaged Plug and Play Operation
- 8 Port 10/100BaseTX Industrial Ethernet Switch
- Eight 10/100BaseTX RJ-45 Ports
- Compact, Space Saving Package
- IEEE 802.3 Compliance
- Extended Environmental Specifications
- -40° to 70°C Operating Temperature
- >2M Hours MTBF
- Supports Full/Half Duplex Operation
- Up to 1.6 Gb/s Maximum Throughput
- MDIX Auto Sensing Cable
- Auto Sensing Speed and Flow Control
- Full Wire Speed Communications
- ESD and Surge Protection on all Built-in Ports
- Surge Protection Diodes on Power Inputs
- Store-and-forward Technology
- Redundant 10-60 VDC Power Inputs
- LED Link/Activity Status Indication
- Hardened Metal DIN-Rail Enclosure
100 Series, 8-Port, N-Tron 108TX HV Unmanaged Industrial Ethernet Switch
Brand:Red Lion
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Mounting Options:DIN Rail
Case Material:Metal
Input Voltage:10-30 VDC
Ingress Protection:IP30
No. Ports:8
10/100 Ports:8
Specifications
| Brand | Red Lion |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Mounting Options | DIN Rail |
| Case Material | Metal |
| Input Voltage | 10-30 VDC |
| Ingress Protection | IP30 |
| No. Ports | 8 |
| 10/100 Ports | 8 |
