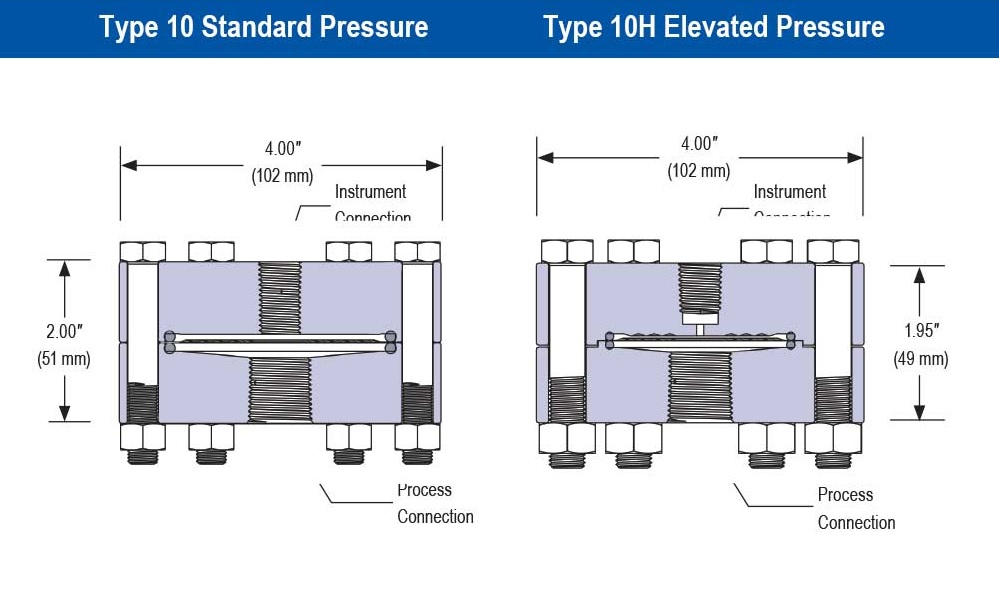

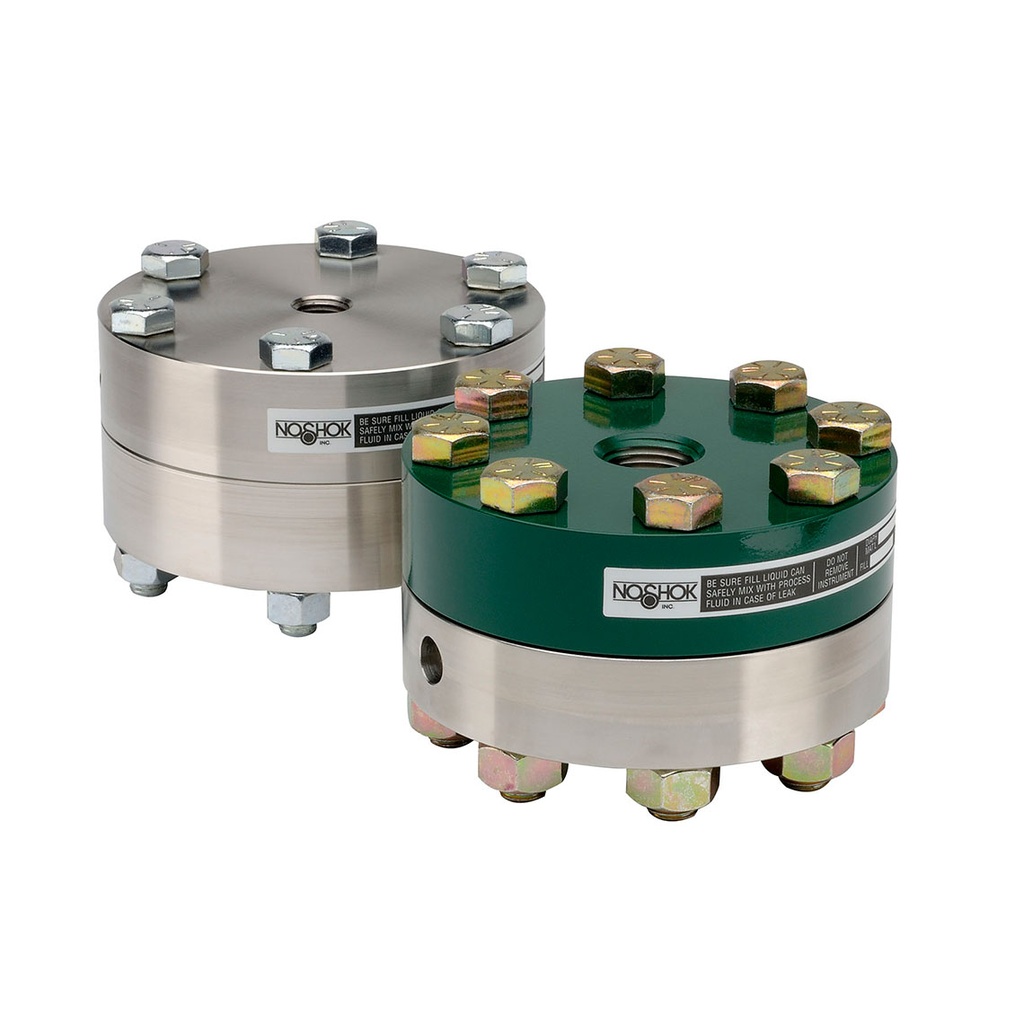

Type 10H Standard & Elevated Pressure, Bolted, Replaceable Diaphragm Seal, 1/2" Instrument, 1/2" Process, 1/8" Flushing
- Designed to isolate the pressure measuring instrument from high temperatures, or corrosive or viscous process media
- Can be used for remote mounting of pressure instrument(s) with capillary, see options & accessories below
- Utilizes a replaceable diaphragm clamped between the flanged metal housings with an o-ring seal to create a leak-free union
- Process connection sizes from 1/4" NPT through 1-1/2" NPT
WARNING: This product can expose you to chemicals including Chromium (VI) and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Designed to isolate the pressure measuring instrument from high temperatures, or corrosive or viscous process media
- Can be used for remote mounting of pressure instrument(s) with capillary, see options & accessories below
- Utilizes a replaceable diaphragm clamped between the flanged metal housings with an o-ring seal to create a leak-free union
- Process connection sizes from 1/4" NPT through 1-1/2" NPT
WARNING: This product can expose you to chemicals including Chromium (VI) and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Valve Features | |
|---|---|
| Valve: Diaphragm Material | 316 SS |
| Others | |
|---|---|
| Process Connection Type | NPT |
| Instrument Connection Size | 1/2" |
| Instrument Connection Type | NPT |
| Process Connection Size | 1/2" |
| O-Ring | NBR |
| Upper Housing Material | 316 SS |
| Lower Housing Material | 316 SS |
| Flushing Connection Size | 1/8" |
| Flushing Connection Type | NPT |
