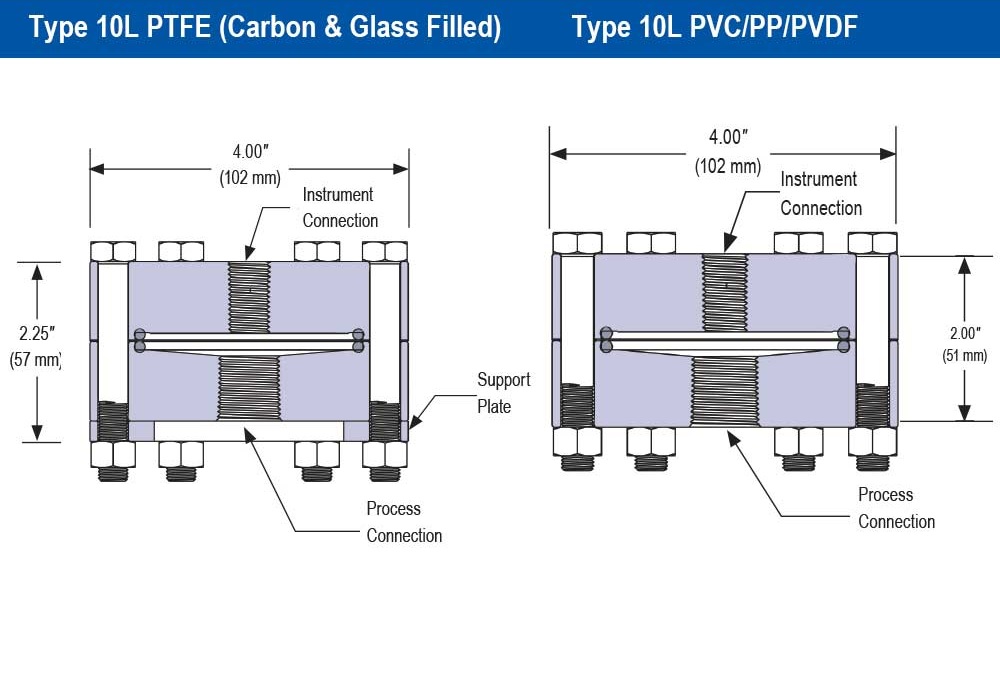

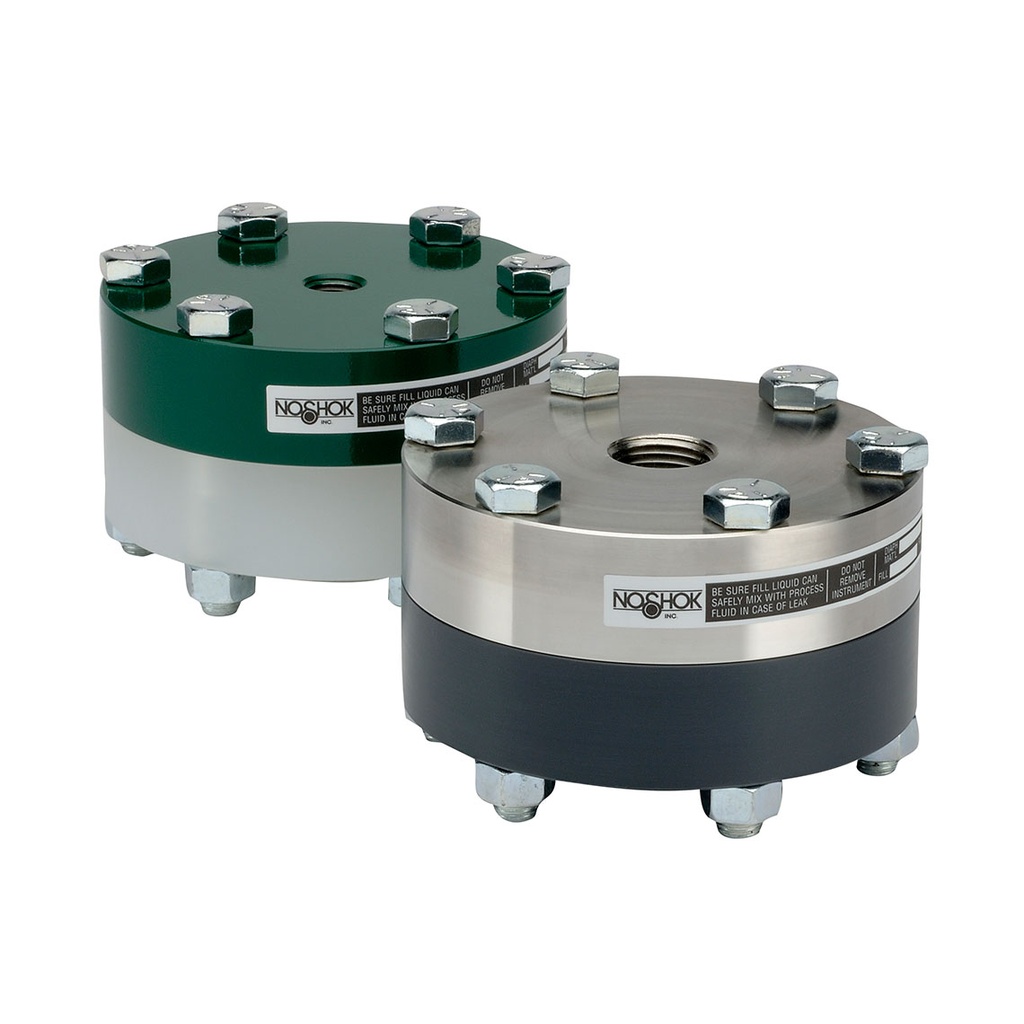

Type 10L Reduced Pressure, Non-Metallic Lower, Bolted, Replaceable Diaphragm Seal, 1/4" Instrument, 1-1/4" Process, PTFE O-Ring
- Intended for corrosive or viscous pressure media
- Designed for applications where typical metallic lower housings cannot withstand process media
- Can be used for remote mounting of pressure instrument(s) with capillary, see options & accessories below
- Utilizes a replaceable diaphragm clamped between the flanged housings with an o-ring seal to create a leak-free union
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Intended for corrosive or viscous pressure media
- Designed for applications where typical metallic lower housings cannot withstand process media
- Can be used for remote mounting of pressure instrument(s) with capillary, see options & accessories below
- Utilizes a replaceable diaphragm clamped between the flanged housings with an o-ring seal to create a leak-free union
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Valve Features | |
|---|---|
| Valve: Diaphragm Material | PTFE |
| Others | |
|---|---|
| Process Connection Type | NPT |
| Instrument Connection Size | 1/4" |
| Instrument Connection Type | NPT |
| Process Connection Size | 1-1/4" |
| O-Ring | PTFE |
| Upper Housing Material | 316 SS |
| O-Ring Material | PTFE |
