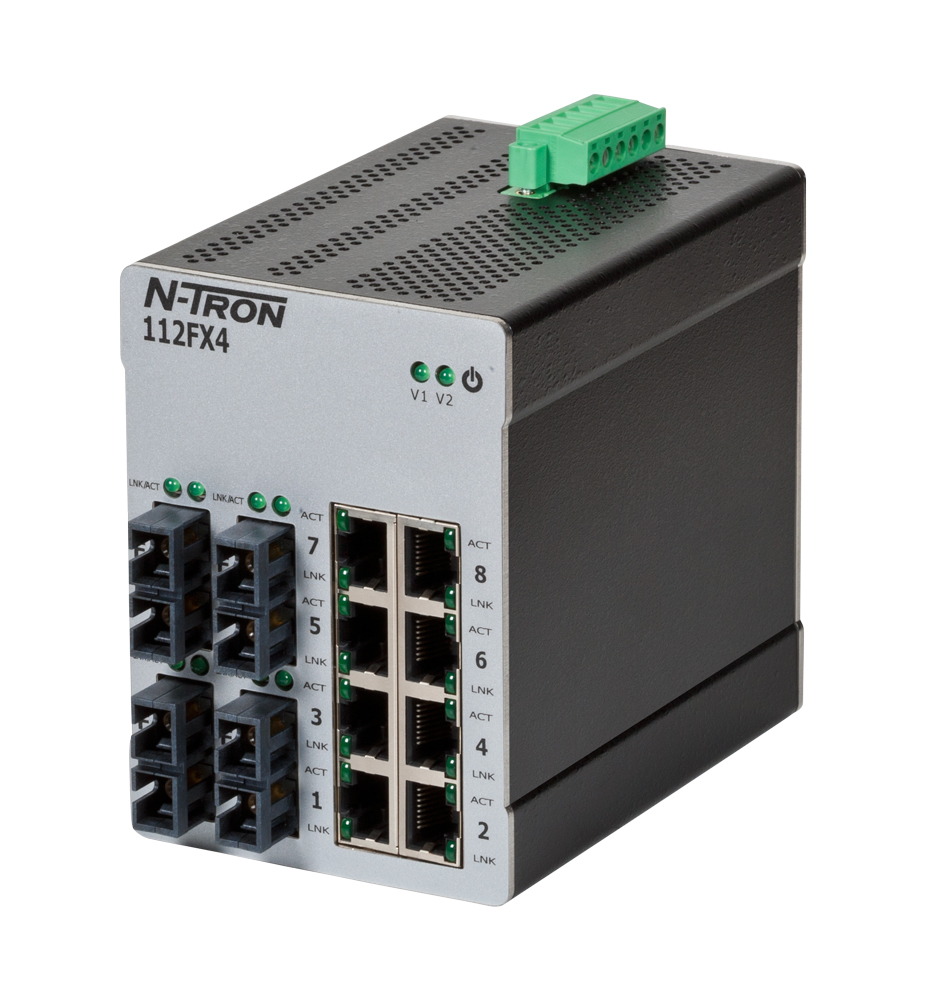

100 Series, 12-Port, N-Tron 112FX4 Unmanaged Industrial Ethernet Switch, SC 40km

https://www.branom.com/web/image/product.template/514793/image_1920?unique=6580a9a
(0 review)

Manufacturer: Red Lion Controls, Inc.

Mfg Product Code: 112FXE4-SC-40

Weight: 2.6 lb(s)

Usually Ships Within 1 - 2 Weeks

Red Lion's N-Tron® series 100 unmanaged Ethernet switches offer an array of port configurations and feature a wide operating temperature range. The budget-saving 100 line provides excellent EMI protection and offer hardened metal DIN-rail mountable enclosures to expand your industrial Ethernet network.

Features

  • Unmanaged Plug and Play Operation
  • 12 Port Industrial Ethernet Switch
    • Eight 10/100BaseTX RJ-45 Ports
    • Four 100BaseFX Singlemode 40km Fiber Ports with SC Connectors
  • RJ-45 Ports Support Full/Half Duplex Operation
  • Auto Sensing Duplex, Speed, and MDIX (RJ-45 Ports)
  • Full Wire Speed Communication
  • Store-and-forward Technology
  • Compact, Space Saving Package
  • IEEE 802.3 Compliance
  • Extended Environmental Specifications
    • -40°C to 80°C Operating Temperature
    • >2M Hours MTBF
  • ESD and Surge Protection on all Built-in Ports
  • Surge Protection Diodes on Power Inputs
  • Redundant Power Inputs (10-49 VDC)
  • LED Link/Activity Status Indication
  • Hardened Metal DIN-Rail Enclosure

1,952.00 1952.0 USD 1,952.00

1,952.00

Not Available For Sale

  • Brand_Name
  • Min Operating Temperature
  • Max Operating Temperature
  • Mounting Options
  • Case Material
  • Input Voltage
  • Ingress Protection
  • Fiber Type
  • Ethernet Connector Type
  • No. Ports
  • 10/100 Ports
  • 100 Fiber Ports
  • Distance Rating

This combination does not exist.


Product Datasheets

Datasheet 1

100 Series, 12-Port, N-Tron 112FX4 Unmanaged Industrial Ethernet Switch, SC 40km

  • Brand_Name
  • Min Operating Temperature
  • Max Operating Temperature
  • Mounting Options
  • Case Material
  • Input Voltage
  • Ingress Protection
  • Fiber Type
  • Ethernet Connector Type
  • No. Ports
  • 10/100 Ports
  • 100 Fiber Ports
  • Distance Rating

1,952.00 1952.0 USD 1,952.00

1,952.00

Not Available For Sale

This combination does not exist.


Brand_Name:Red Lion
Min Operating Temperature:-40 °C
Max Operating Temperature:80 °C
Mounting Options:DIN Rail
Case Material:Metal
Input Voltage:10-49 VDC
Ingress Protection:IP20
Fiber Type:Singlemode
Ethernet Connector Type:SC
No. Ports:12
10/100 Ports:8
100 Fiber Ports:4
Distance Rating:40 km


Specifications

Brand_Name Red Lion
Min Operating Temperature -40 °C
Max Operating Temperature 80 °C
Mounting Options DIN Rail
Case Material Metal
Input Voltage 10-49 VDC
Ingress Protection IP20
Fiber Type Singlemode
Ethernet Connector Type SC
No. Ports 12
10/100 Ports 8
100 Fiber Ports 4
Distance Rating 40 km
