Representative photo. Please check item description for details.

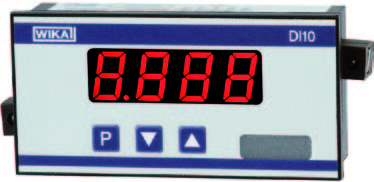

Wika DI10 Digital Indicator, Input: 4-20 mA Current Loop, Alarm Output: 2 PhotoMOS Outputs
Features:
- Digital Indicator Model DI10
- Specifications according to data sheet: AC 80.06
- Dimensions: 96 x 48 x 41 mm
- Mounting Provisions
- Display: LED, 4-Digit from -1999...9999
- Accuracy of Reading: +/- 0,3 % of span +/- 1 digit
- Power Supply: supply by the 4 ... 20 mA current loop
- Special Design Features: min./max. value memory as well as code-protected input locking
- Input: 4 ... 20 mA current loop
- Alarm output: 2 PhotoMOS outputs, potential-free (max. AC/DC 30 V, 0,4 A)
- Ingress Protection: IP65 (front), IP00 (back side)
- Instrument configuration: factory adjustment, device will be configured by the operator
- Configuration measuring range start value: without
- Configuration measuring range end value: without
- Additional configuration details: without
- Special design features: without
Features:
- Digital Indicator Model DI10
- Specifications according to data sheet: AC 80.06
- Dimensions: 96 x 48 x 41 mm
- Mounting Provisions
- Display: LED, 4-Digit from -1999...9999
- Accuracy of Reading: +/- 0,3 % of span +/- 1 digit
- Power Supply: supply by the 4 ... 20 mA current loop
- Special Design Features: min./max. value memory as well as code-protected input locking
- Input: 4 ... 20 mA current loop
- Alarm output: 2 PhotoMOS outputs, potential-free (max. AC/DC 30 V, 0,4 A)
- Ingress Protection: IP65 (front), IP00 (back side)
- Instrument configuration: factory adjustment, device will be configured by the operator
- Configuration measuring range start value: without
- Configuration measuring range end value: without
- Additional configuration details: without
- Special design features: without
