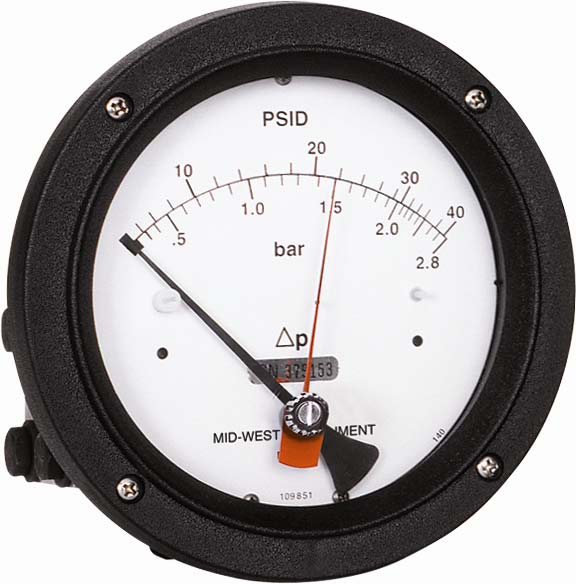

Mid-West 140 SS Differential Pressure Gauge, 4.5" dial, 0 to 3000 psig (0 to 50 psid), 1/4 NPTF End Mount
Model 140 – Mid-West Instrument convoluted diaphragm type gauge provides a terminal strip interface to aid in ease of electrical installation of your switch or transmitter. The Model 140 also has the option to add a 4-20 mA transmitter for applications that require constant monitoring. Available with multiple switch options including Hazardous location options. Full scale accuracies of ±5%(0-50” H2O to 399” H2O) and ±3/2/3% (0-15 PSID to 0-100 PSID) are available. The Model 140 is an accurate and versatile diaphragm type differential pressure gauge/switch or transmitter that will meet your most demanding DP requirements.
Features
- 3000 P.S.I.G. working pressure
- 316/316L Stainless Steel body and internal metal parts
- Buna-N diaphragm and seals
- Teflon® guide bushings
- 1/4" FNPT end connections
- Engineered plastic dial gauge case
- Panel mount is standard
Model 140 – Mid-West Instrument convoluted diaphragm type gauge provides a terminal strip interface to aid in ease of electrical installation of your switch or transmitter. The Model 140 also has the option to add a 4-20 mA transmitter for applications that require constant monitoring. Available with multiple switch options including Hazardous location options. Full scale accuracies of ±5%(0-50” H2O to 399” H2O) and ±3/2/3% (0-15 PSID to 0-100 PSID) are available. The Model 140 is an accurate and versatile diaphragm type differential pressure gauge/switch or transmitter that will meet your most demanding DP requirements.
Features
- 3000 P.S.I.G. working pressure
- 316/316L Stainless Steel body and internal metal parts
- Buna-N diaphragm and seals
- Teflon® guide bushings
- 1/4" FNPT end connections
- Engineered plastic dial gauge case
- Panel mount is standard
Specifications
| Gauge: Brand | Mid-West |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Product Unit of Measure | psid, psig |
| Gauge: Process Connection Location | In-Line, End Connection |
| Gauge: Case Material | Stainless Steel |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Dial Size | 4-1/2 in (110 & 115 mm) |
| Gauge: Process Connection Size | 1/4 NPT Female |
| Gauge: Accuracy | ±3% |
| Gauge: Measuring Principle | Diaphragm Element |
| Gauge: Pressure Type | Differential Pressure, Differential Pressure |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
