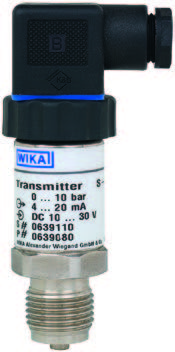

Representative photo. Please check item description for details.
Model S-20 Pressure Transmitter, 0-10PSI , 4-20mA, 0.125% BFSL, 1/2" NPT Process Connection, Angular DIN 175301-803 A Electrical Connection
S-20 ; 0 ... 10 psig; 4...20 mA, 2-wire @ DC 8...35 V
Pressure transmitter Model S-20
non-linearity: 0.125% BFSL
Overpressure safety: 3 times
Process Connection: 1/2 NPT ; Sealing: without
Pressure port: D 2.5 mm
Electrical connection: angular connector DIN 175301-803 A mating connector included
pin assignment el. connection: U+=1, U-=2
permitted media temperature: -30...+100°C
shock and vibration resistance: 100 g shock, 20 g vibration
Leakage rate: 5x10^-3 (mbar*l)/s
Approvals: cULus
Test protocol: with test protocol
S-20 ; 0 ... 10 psig; 4...20 mA, 2-wire @ DC 8...35 V
Pressure transmitter Model S-20
non-linearity: 0.125% BFSL
Overpressure safety: 3 times
Process Connection: 1/2 NPT ; Sealing: without
Pressure port: D 2.5 mm
Electrical connection: angular connector DIN 175301-803 A mating connector included
pin assignment el. connection: U+=1, U-=2
permitted media temperature: -30...+100°C
shock and vibration resistance: 100 g shock, 20 g vibration
Leakage rate: 5x10^-3 (mbar*l)/s
Approvals: cULus
Test protocol: with test protocol
