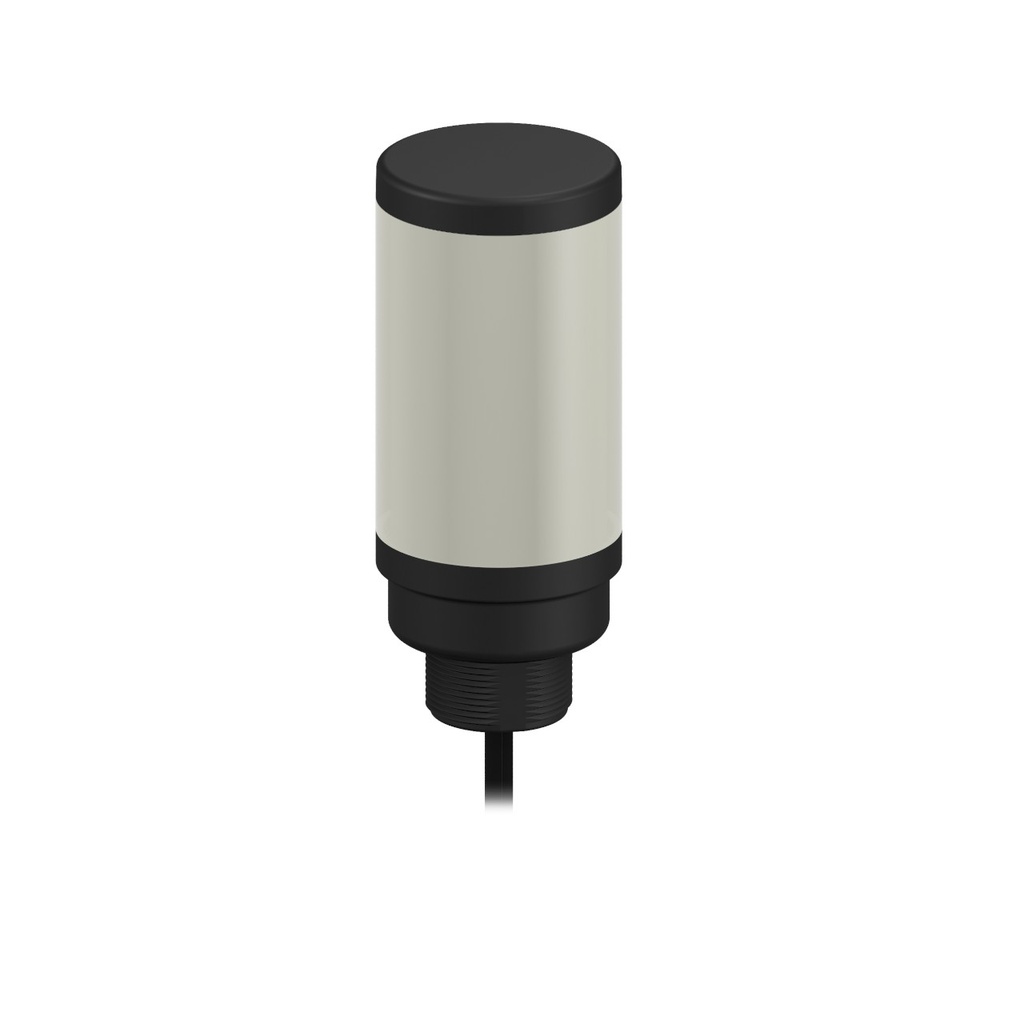

Column Light: 1-Color Indicator (CL50YXX2P-15000)
Features:
- Column Light: 1-Color Indicator; Voltage: 18-30 V dc; Environ. Rating: IP67; Input: PNP; Colors: Yellow flash; 2 m (6.5 ft) cable
- Power: DC
- Feature: Display: No
- Feature: Display Lighting: No
- Max Current Color: 100 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Power Source: VDC
- Ingress Protection: IP67
- Housing Style: Base Mount - Tower
- Max Relative Humidity: 95% @ 50 °C (NC)
- Housing Material_: ABS/Polycarbonate
- Feature: IO Link: No
- Feature: Modbus RTU: No
- Feature: Indication: Yes
- Supply Voltage: 18-30 VDC
- Feature: Quick Disconnect: No
- Lumens Color 1: 30
- Color Technology: Standard LED
- Feature: Audible: No
- Color Option 1: Yellow
- Color 1 - Wavelength/Color Temp/Coordinates: 590 nm
- Housing Color: Black
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Animation Option 1: Flashing Only
- Number of Colors / Segments: 1
- Product Size (mm): 50 mm
- Number of Input Pins/Conductors: 4
- Input Type: PNP
- Max Op. Relative NC Humidity: 95% @ 50 °C
- Feature: Pro-Editor Compatible (Discrete): No
- Mounting Thread: M30 x 1.5
- Max Input Response Time (ms): 10 ms
- Feature: Chemical Resistant: No
- Connection Type: Cable
- NEMA / UL: NEMA/UL 13
- Cord/Cable Length: 2 m
