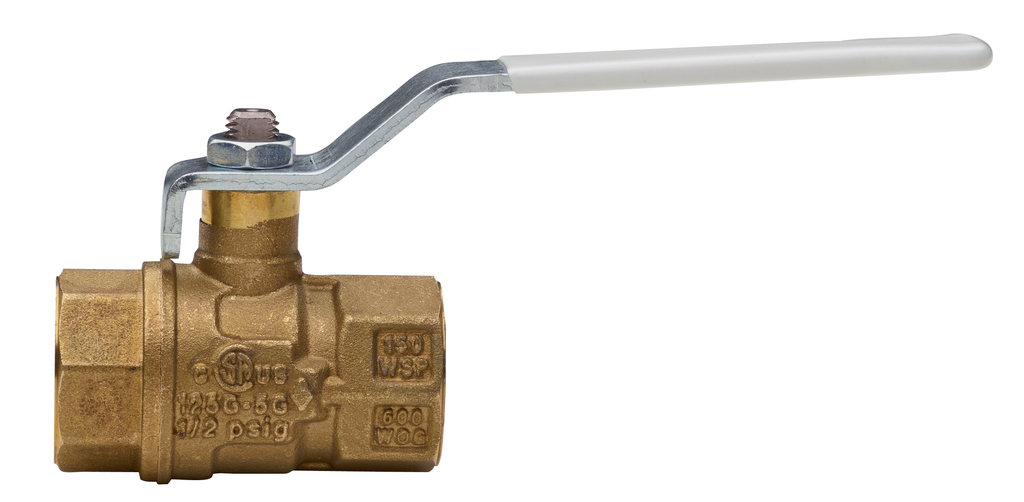

161N LF / 162N LF Lead Free Series, Brass Ball Valve, FNPT Threaded, Full Port
Manufacturer: Bonomi North America Inc
Mfg Product Code:
Weight: 5.0 lb(s)
Lead Free Series brass ball valve, FNPT threaded, full port.
Features
Pressure rating 600 WOG-150 WSP.
Temperature range -4°F to 366°F.
ANSI B1.20.1 connections.
Blow-out proof stem, SLT coated LF brass ball.
PTFE seats and double O-ring stem packing.
100% electronically tested in the open and closed position at 80 psi.
Valve to be used in fully open or fully closed position.
Meets the design criteria of MSS SP-110
The Buna O-ring is fitted to the stem of the valve as the best possible protection against potential gas leakage under extreme duty, or low pressure applications. A secondary P.T.F.E stem seal will also assure that the valve is suitable for use up to 366°F.
Model Details
161N LF: LEVER HANDLE - size 1/2” to 4”.
162N LF: T- HANDLE - size 1/2” to 1”.
For Sizes 1/4” and 3/8” see 171N LF.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
161N LF / 162N LF Lead Free Series, Brass Ball Valve, FNPT Threaded, Full Port
Specifications
| Handle | [161N LF] Lever Handle or [162N LF] T-Handle |
| Valve Size | 1/2" or 3/4" or 1" or 1-1/4" or 1-1/2" or 2" or 2-1/2" or 3" or 4" |
