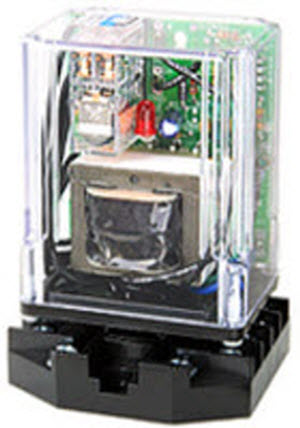

Series 16DM DPDT Load Contact, Solid State Plug-In Module

https://www.branom.com/web/image/product.template/163065/image_1920?unique=62cb90f
(0 review)

$ 468.17 468.17 USD $ 468.17

$ 468.17

Not Available For Sale

  • Measurement Maximum
  • Measurement Minimum
  • Input Voltage

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Description

Series 16M Solid State Plug-in Modules offer general purpose, high-sensitivity and field-sensitivity control as well as a DPDT load contact option. Series 16M

  • General Purpose Designed for either differential or single-level service. U.L. "Motor Controller"

    listing, 8-pin socket with screw-type connections make the unit easy to install and service. Sensitivity of up to 1 million ohm/cm. Series 16DM
  • DPDT Load Contact Similar to Series 16M but with DPDT load contacts. Eliminates the need for slave relays.

    11 pin octal plugs. Requires little panel space. General purpose single-level or diffferential applications. U.L. listed. Series 16HM
  • High Sensitivity Series 16HM is similar to Series 16M but provides higher sensitivity up to 5.5 million ohm/cm.

    Probe voltage is 12 VDC for applications with low conductive media. Series 16VM
  • Field Selectable Sensitivity Similar to Series 16M but with the added flexibility of field adjustable sensitivity, made possible through external setpoint resistors.

    Uses 11 pin octal socket. U.L. listed.

  • Sku: 16DML1A0
  • Model: 16DM
  • Sensor Type: General Purpose Controls
  • Mode Of Operation: Inverse
  • Sensitivity: 10 K ohms
  • Control Style: Plug-In Module
  • Socket Style: 11 Pin Octal
  • Standoff Style: N/A
  • Enclosure: N/A
  • Contact Design: 2 Normally Open & 2 Normally Closed (non-powered)
  • Contact Rating: 5 Amp Resistive 1/10 horse power
  • Supply Voltage: 120 VAC
  • Secondary Voltage: 12 VAC
  • Terminal Style: Screw Connector
  • Minimum Temperature: -40°F
  • Maximum Temperature: 150°F
  • Protection: Non-Intrinsically Safe
  • Approvals: UL 508 General Purpose
  • Weight: 1.1

    • Specifications

    Measurement Maximum 0
    Measurement Minimum 0
    Input Voltage 120 VAC
