Description

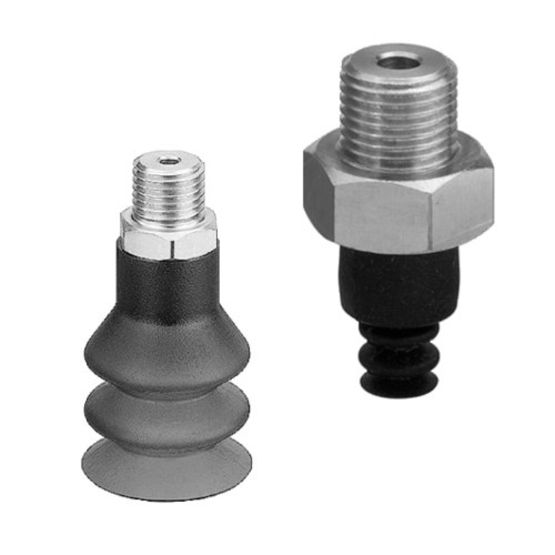

AVENTICS Series BSA bellow suction grippers are suitable for workpieces with curved or inclined surfaces, as well as to compensate for height tolerances or to handle large-surface, non-rigid components such as large, thin sheets.
Features
- Min. ambient temperature: -30 °C
- Max. ambient temperature: 180 °C
- Temperature resistance: Heat resistant
- Temporary ambient temperature (<30 s) min.: -50 °C
- Temporary ambient temperature (<30 s) max.: 220 °C
- Compressed air connection: G 1/8
- external diameter: 9 mm
- Holding force: 0.7 N
- Separation force: 2.3 N
- Volume: 0.15 cm³
- Max. curving on object Rmin: 10 mm
- Abrasion value according to DIN 535 16: 180-200 mm³
- Hardness according to standard: 55 ± 5 Shore A
- Connection thread type: Internal thread
- Material connector: Aluminum
- Suction unit material: Fluoromethyl silicone
- Delivery unit: 2 piece
- Weight: 0.005 kg:
