Description
Features:

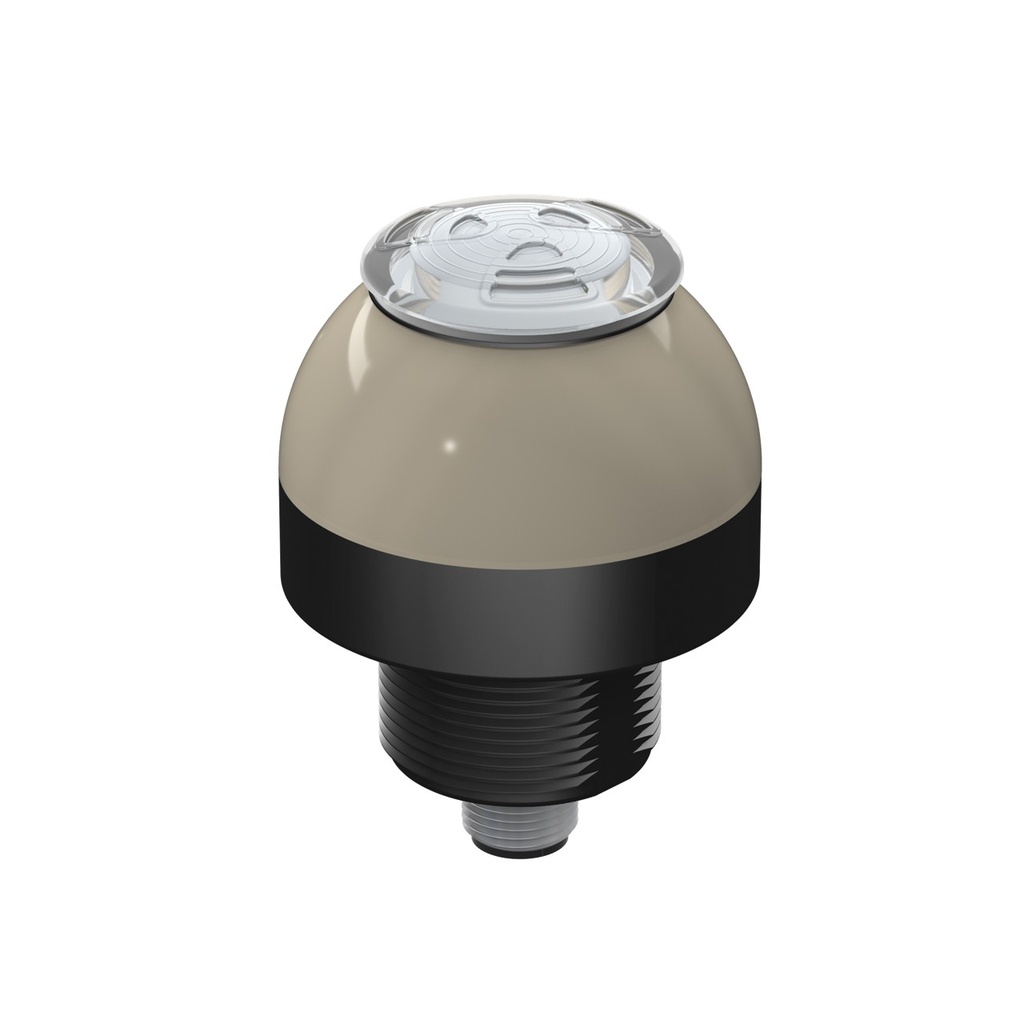

- K50 Series EZ-LIGHT: 1-Color Sealed Audible Indicator
- Voltage: 12
- 30V dc
- Housing: Polycarbonate
- IP69K tone: Loud
- Input: PNP
- Colors: Green
- Euro-style Quick-Disconnect Connector
- Power: DC
- Feature: Display: No
- Feature: Display Lighting: No
- Max Current Color: 35 mA
- Max Current - Audible Alarm (mA): 35 mA
- Min Operating Temperature: -20 °C
- Max Operating Temperature: 50 °C
- Power Source: VDC
- Ingress Protection: IP67/69
- Housing Style: Base Mount - Dome Window
- Max Relative Humidity: 95% @ 50 °C (NC)
- Housing Material_: Polycarbonate
- Feature: Washdown Rated: Yes
- Feature: Hazardous Area: No
- Feature: IO Link: No
- Feature: Modbus RTU: No
- Physical Dimensions: 50.0 x 73.0 mm
- Feature: Wireless: No
- Feature: Indication: Yes
- Max Audible Intensity: 65 dB @ 1 m
- Supply Voltage: 12-30 VDC
- Feature: Quick Disconnect: Yes
- Min Audible Intensity @ 1m: 65 dB
- Color Technology: Standard LED
- Feature: Audible: Yes
- Color Option 1: Green
- Housing Color: Black
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Single Color On
- Animation Option 1: Solid On
- Quick Disconnect Type: M12
- Audible Operating Frequency (kHz): 2.9
- Number of Colors / Segments: 1
- Product Size (mm): 50 mm
- Number of Input Pins/Conductors: 5
- Input Type: PNP
- Max Op. Relative NC Humidity: 95% @ 50 °C
- Feature: Pro-Editor Compatible (Discrete): No
- Mounting Thread: M30 x 1.5
- Max Input Response Time (ms): 1 ms
- Feature: Chemical Resistant: No
- Audible Alarm Type: Continuous
- Secondary Material: Polycarbonate
- Connection Type: Integral QD
- NEMA / UL: NEMA/UL 4X/13
