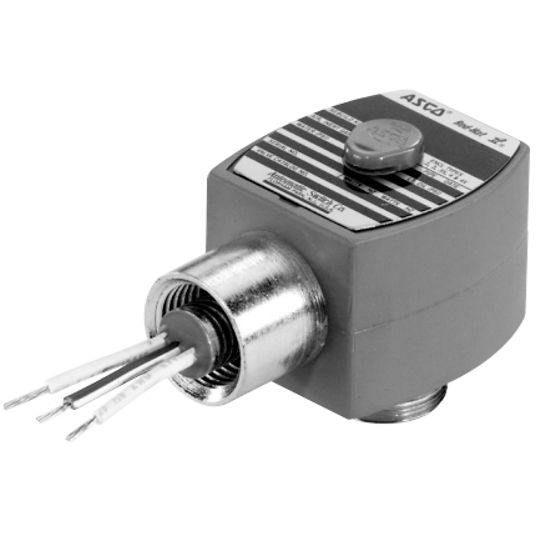

Representative photo. Please check item description for details.
200 Series Solenoid Operator (Nema Type, CSA)
The ASCO Series 200 is the same RedHat II molded epoxy solenoid operator used on general purpose ASCO valves. It is available in four standard wattages, AC or DC.
Features
- The standard operator model is a RedHat II watertight, types 1, 2, 3, 3S, 4, and 4X.
- Optional features include RedHat II explosion-proof and watertight, types 3, 3S, 4, 4X, 6, 6P, 7, and 9
- Nominal ambient temperature range is 32° F to 125° F (AC); 32° F to 104° F (DC)
- Mountable in any position for flexible installation
The ASCO Series 200 is the same RedHat II molded epoxy solenoid operator used on general purpose ASCO valves. It is available in four standard wattages, AC or DC.
Features
- The standard operator model is a RedHat II watertight, types 1, 2, 3, 3S, 4, and 4X.
- Optional features include RedHat II explosion-proof and watertight, types 3, 3S, 4, 4X, 6, 6P, 7, and 9
- Nominal ambient temperature range is 32° F to 125° F (AC); 32° F to 104° F (DC)
- Mountable in any position for flexible installation
Specifications
| Asco 8200 | |
|---|---|
| Solenoid Option | None, [EF] Explosionproof, [GP] Panel Mount Type 1 General Purpose Solenoid, [J] Junction Box, [JB] Factory Assembled Junction Box, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit, [JP] Panel Mount Junction Box, [OF] Open Frame Spade and Screw Terminal Solenoids, [OP] Panel Mount Spade, Screw and DIN Terminal Solenoids |
| Coil Options | None, [HT] Class H - High Temperature, [KF] Class F - High Temperature - Screw Terminals, [KH] Class H - High Temperature - Screw Terminals, [SC] Class F - High Temperature - DIN Connection, [SF] Class F - High Temperature - Spade Terminals, [ST] Class H - High Temperature - Spade Terminals, [SU] Class H - High Temperature - DIN Connection |
| Optional Lead Type | Standard, [L] Continuous Leads |
| Lead Length | Standard, 18" [D], 72" [K] |
| Optional Seat/Disc/Etc. Material | None, [V] FKM |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Product Specifications | [G001] 6.1 Watt | F Class |
| Valve Features | |
|---|---|
| Valve: Core Tube | 305 SS |
| Valve: Core and Plugnut | 430F SS |
| Valve: Seal Material | NBR |
| Valve: Shading Coil | Copper |
| Valve: Disc Material | NBR, PA |
| Valve: Springs | 302 SS |
| Valve: Enclosure Type | Redhat II - Watertight, Redhat II - Explosionproof & Watertight |
| Valve: Actuation | Solenoid |
| Valve: Media | Air-Inert Gas, Light Oil, Water |
| Valve: Function | 2-Way Normally Closed |
| Valve: Brand | Asco |
