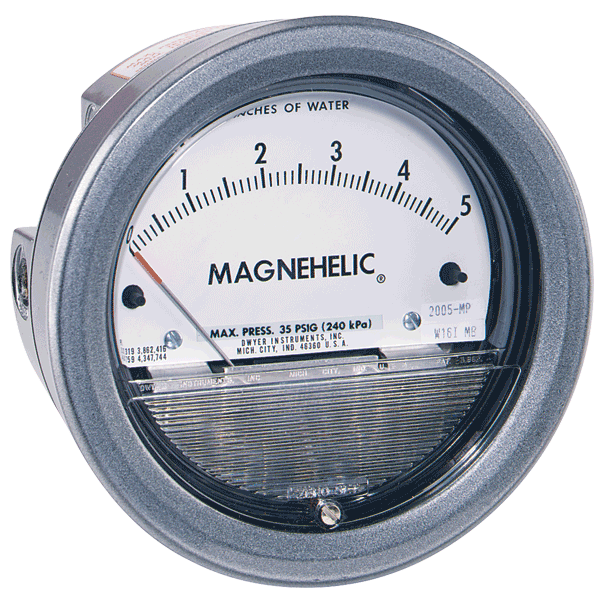

  3. MAGNEHELIC GAGE, 4.5"DIAL, 0-5" WATER COLUMN, 1/8"NPT FEMALE
Public Pricelist (v2)
MAGNEHELIC GAGE, 4.5"DIAL, 0-5" WATER COLUMN, 1/8"NPT FEMALE
Representative photo. Please check item description for details.

MAGNEHELIC GAGE, 4.5"DIAL, 0-5" WATER COLUMN, 1/8"NPT FEMALE

https://www.branom.com/web/image/product.template/178527/image_1920?unique=f069c2d
(0 review)

- Service: Air and non-combustible, compatible gases (natural gas option available). Note: May be used with hydrogen. Order a Buna-N diaphragm. Pressures must be less than 35 psi.

  • Wetted Materials: Consult factory.
  • Housing: Die cast aluminum case and bezel, with acrylic cover, Exterior finish is coated gray to withstand 168 hour salt spray corrosion test.
  • Accuracy: ±2% (-HA model ±1) of FS (±3% (-HA ±1.5%) on -0, -100PA, -125PA, -10MM and ±4% (-HA ±2%) on -00, -60PA, -6MM ranges), throughout range at 70°F (21.1°C).
  • Pressure Limits: -20 in Hg. to 15 psig.† (-0.677 bar to 1.034 bar); MP option: 35 psig (2.41 bar), HP option: 80 psig (5.52 bar).
  • Enclosure Rating: IP67.
  • Overpressure: Relief plug opens at approximately 25 psig (1.72 bar), standard gages only. See Overpressure Protection note on Catalog page.
  • Temperature Limits: 20 to 140°F (-6.67 to 60°C). -20°F (-28°C) with low temperature option.
  • Size: 4" (101.6 mm) diameter dial face.
  • Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
  • Process Connections: 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back.
  • Weight: 1 lb 2 oz (510 g); MP & HP 2 lb 2 oz (963 g).
  • Standard Accessories: Two 1/8" NPT plugs for duplicate pressure taps, two 1/8" pipe thread to rubber tubing adapters and three flush mounting adapterswith screws. (Mounting and snap ring retainer substituted for three adapters in MP & HP gage accessories.)
  • Agency Approval: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II). Note: -SP models not RoHS approved.
  • ~
  • Note: For applications with high cycle rate within gage total pressure rating, next higher rating is recommended. See Options Page.

    • $ 94.40 94.4 USD $ 94.40

    $ 94.40

    Not Available For Sale

    • Gauge: Brand
    • Gauge: Type
    • Gauge: Dial Size
    • Gauge: Accuracy

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share

    - Service: Air and non-combustible, compatible gases (natural gas option available). Note: May be used with hydrogen. Order a Buna-N diaphragm. Pressures must be less than 35 psi.

  • Wetted Materials: Consult factory.
  • Housing: Die cast aluminum case and bezel, with acrylic cover, Exterior finish is coated gray to withstand 168 hour salt spray corrosion test.
  • Accuracy: ±2% (-HA model ±1) of FS (±3% (-HA ±1.5%) on -0, -100PA, -125PA, -10MM and ±4% (-HA ±2%) on -00, -60PA, -6MM ranges), throughout range at 70°F (21.1°C).
  • Pressure Limits: -20 in Hg. to 15 psig.† (-0.677 bar to 1.034 bar); MP option: 35 psig (2.41 bar), HP option: 80 psig (5.52 bar).
  • Enclosure Rating: IP67.
  • Overpressure: Relief plug opens at approximately 25 psig (1.72 bar), standard gages only. See Overpressure Protection note on Catalog page.
  • Temperature Limits: 20 to 140°F (-6.67 to 60°C). -20°F (-28°C) with low temperature option.
  • Size: 4" (101.6 mm) diameter dial face.
  • Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
  • Process Connections: 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back.
  • Weight: 1 lb 2 oz (510 g); MP & HP 2 lb 2 oz (963 g).
  • Standard Accessories: Two 1/8" NPT plugs for duplicate pressure taps, two 1/8" pipe thread to rubber tubing adapters and three flush mounting adapterswith screws. (Mounting and snap ring retainer substituted for three adapters in MP & HP gage accessories.)
  • Agency Approval: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II). Note: -SP models not RoHS approved.
  • ~
  • Note: For applications with high cycle rate within gage total pressure rating, next higher rating is recommended. See Options Page.

    • Specifications

    Gauge: Brand Dwyer
    Gauge: Type Dial Indicating Gauge
    Gauge: Dial Size 4-1/2 in (110 & 115 mm)
    Gauge: Accuracy ±1%
