Watlow Thermocouple Type J, Style 32, .188" Diameter, 8" Length

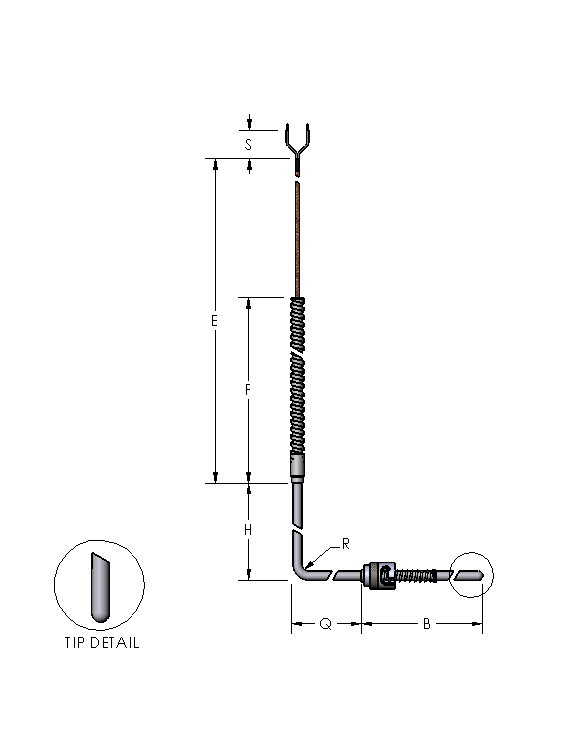

Representative photo. Please check item description for details.

Watlow Thermocouple Type J, Style 32, .188" Diameter, 8" Length

https://www.branom.com/web/image/product.template/181323/image_1920?unique=af74d23
(0 review)

Sensor Style 32 Style- .125 & .188 Dia-Bayonet-90°
Sheath Outside Diameter [in] D = .188 inch
Junction Type/Tip Style U: Single "U" Round Tip
Calibraton Type Type J
Limits of Error Standard - (±2.2 or ±0.75%) C°
(B) Dimension 8.000
(Q) Dimension 0.750
(H) Dimension 1.625
Strain Relief None
Potting 00 - None
Lead Wire Type K -PFA w/SS Flex Armor, 24 GA Stranded
Lead Length [in] (E) 360
Flex Armor Length [in] (F) 36
Termination/Options A-Standard, 2 1/2" Split Leads
Insulated Singles Length [in] (S) 2.500
Lead wire Color Code ANSI - United States Standard


  • Measurement Maximum
  • Measurement Minimum

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Sensor Style 32 Style- .125 & .188 Dia-Bayonet-90°
Sheath Outside Diameter [in] D = .188 inch
Junction Type/Tip Style U: Single "U" Round Tip
Calibraton Type Type J
Limits of Error Standard - (±2.2 or ±0.75%) C°
(B) Dimension 8.000
(Q) Dimension 0.750
(H) Dimension 1.625
Strain Relief None
Potting 00 - None
Lead Wire Type K -PFA w/SS Flex Armor, 24 GA Stranded
Lead Length [in] (E) 360
Flex Armor Length [in] (F) 36
Termination/Options A-Standard, 2 1/2" Split Leads
Insulated Singles Length [in] (S) 2.500
Lead wire Color Code ANSI - United States Standard

Specifications

Measurement Maximum 0
Measurement Minimum 0
