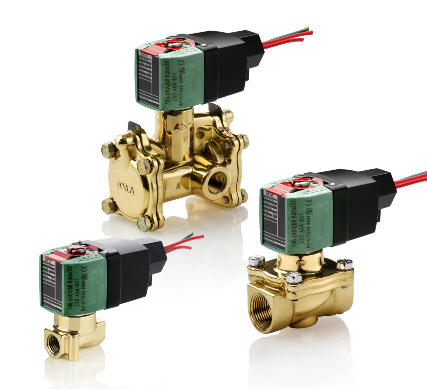

Representative photo. Please check item description for details.
Description
The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
Features
- Increase in DC pressure ratings to AC levels on all
products (up to a 500% improvement) - Lower power operation
- Voltage ranging
- Built-in surge suppression
- Elimination of AC hum
- Increase in AC and DC operating temperatures
- Low solenoid temperature rise
- Longer coil life due to lower operating temperatures
and electrical surge suppression - Solenoid approvals to UL, CSA, and CE directives
- Available with Class I,Division 2 coils (EE prefix)
- RoHS 2 Compliant
2-Way Features
- Two-way (2/2) Next Generation solenoid valves have one inlet port and one outlet port
- Control of air, water, light oil, and non-corrosive media
- Normally closed (opens when energized) and normally open (closed when energized) operation
- Pipe sizes – 1/8 to 2 inch
Specifications
| Asco 8210 EE | |
|---|---|
| Product Specifications | Brass | 3/8" Pipe | 5/8" Orifice | 3 Cv Flow, Brass | 3/8" Pipe | 5/8" Orifice | 3 Cv Flow, Stainless Steel | 1/2" Pipe | 5/8" Orifice | 4 Cv Flow, Brass | 1/2" Pipe | 5/8" Orifice | 4 Cv Flow, Brass | 1/2" Pipe | 5/8" Orifice | 4 Cv Flow, Stainless Steel | 3/4" Pipe | 5/8" Orifice | 4.5 Cv Flow, Brass | 3/4" Pipe | 3/4" Orifice | 5 Cv Flow, Brass | 1" Pipe | 1" Orifice | 13 Cv Flow, Brass | 1-1/4" Pipe | 1-1/8" Orifice | 15 Cv Flow, Brass | 1-1/2" Pipe | 1-1/4" Orifice | 22.5 Cv Flow, Brass | 2" Pipe | 1-3/4" Orifice | 43 Cv Flow |
| Solenoid Option | None, Class I, Division 2 General Purpose |
| Coil Options | None, Class H - High Temperature - DIN Connection |
| Optional Seat/Disc/Etc. Material | None, EPDM (Ethylene Propylene), EPDM (Ethylene Propylene) (P004, P008), EPDM (Ethylene Propylene) (P022), EPDM (Ethylene Propylene) (P100), CR (Chloroprene, Neoprene), Oxygen, Oxygen (P022), FKM, FKM (P004, P008), FKM (P006), FKM (P022, P100), Oxygen / FKM |
| Optional Manual Operator | Without, Manual Operator |
| Optional Lead Type | Standard, Continuous Leads |
| Optional Mounting Bracket | Without, Mounting Bracket |
| Optional Lead-Free | Without, Lead-Free (P004), Lead-Free (P008), Lead-Free (P022), Lead-Free (P093), Lead-Free (P094), Lead-Free (P095), Lead-Free (P100) |
| Optional Vacuum | Without, High Vacuum |
| Voltage | AC100/240, DC12-24, AC24-120 |
| Valve Features | |
|---|---|
| Valve: Pipe Size | 3/8 in, 1/2 in, 3/4 in, 1-1/2 in, 2 in |
| Valve: Media | Water, Light Oil, Air-Inert Gas |
| Valve: Function | 2-Way Normally Closed |
| Valve: Enclosure Type | Watertight, Hazardous Locations and Watertight |
| Valve: Body Material | Copper Alloy, Stainless Steel |
| Valve: Orifice | 5/8in, 3/4in, 1-1/4in, 1-3/4in |
| Valve: Springs | Stainless Steel |
| Valve: Shading Coil | Silver, Copper |
| Valve: Actuation | Solenoid |
| Valve: Brand | Asco |
| Valve: Flow Factor (Cv) | 4.0, 5.0, 22.5, 43 |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
| Valve: Min Temperature °F | 14 |
| Valve: Max Temperature °F | 140 |
| Valve: Disc Material | NBR |
| Valve: Seal Material | NBR |
