Description

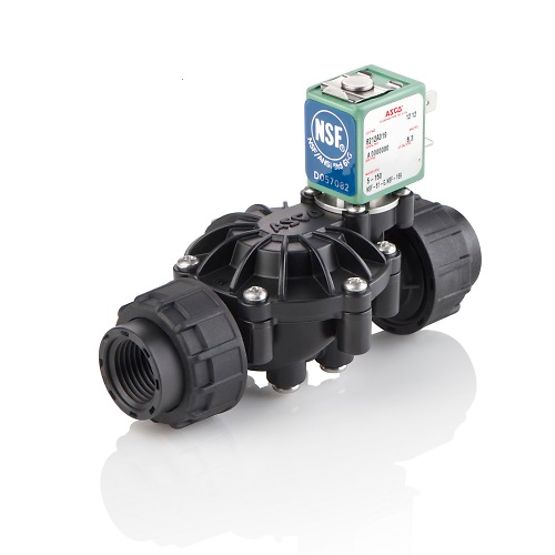

ASCO has perfected composite valve technology with the Series 212, also known as 8212, plastic solenoid valves. The robust, easy-to-install valves are designed specifically for water purification and conditioning systems in commercial and industrial applications. With the highest pressure and temperature ratings on the market -- up to 150 psi and 150°F - the 212 Series solves the breakdown and reliability problems found in other types of composite valves. Its lightweight engineered plastic body has been built and tested to achieve up to 1 million operating cycles. The 212 Series comes with ASCO's new FasN universal connection system - the world's fastest, most secure valve connection technology.
Features
- Ideal for reverse-osmosis and misting systems for drinking water, restaurant equipment, and grocery store applications
- NSF 61 Annex G (drinking water), NSF 169 (special purpose food equipment and devices), NSF 372 (lead-free), and NSF Standard 42 certifications
- FasN universal connection system quickly connects to any type of fitting - NPT, quick-connect with Turn & Lock - for the most rapid assembly, lowest cost, and greatest design flexibility
- Available in 1/2-inch, 3/4-inch, and 1-inch pipe sizes
Specifications
| Asco 8212 LFDW NC | |
|---|---|
| Product Specifications | 1/2" Pipe | 3/4" Orifice | 4.5 Cv Flow | NPT thread / NPT thread, 1/2" Pipe | 3/4" Orifice | 4.5 Cv Flow | NPT thread / Turn & Lock, 3/4" Pipe | 3/4" Orifice | 7 Cv Flow | NPT thread / NPT thread, 3/4" Pipe | 3/4" Orifice | 7 Cv Flow | NPT thread / Turn & Lock, 1" Pipe | 1" Orifice | 13 Cv Flow | NPT thread / NPT thread |
| Coil Electrical Connection | DIN Type Coil w/o Connector, Leaded Coil, Leaded Coil w/ 1/2” NPT Threaded Conduit Adaptor |
| Pressure Vessel Options | No Options, Manual Override (Stainless Steel) (A519), Manual Override (Stainless Steel) (A523), Mounting Bracket (Stainless Steel) (A519), Mounting Bracket (Stainless Steel) (A523), Mounting Bracket (Stainless Steel) (A534, A537), Mounting Bracket (Stainless Steel) (A541), Mounting Bracket (Stainless Steel) (A555), Manual Override w/ Mounting Bracket, Manual Override w/ Mounting Bracket (A523), No Options (A519), No Options (A537), No Options (A523, A555), Manual Override (Stainless Steel) (A519, A555), Manual Override (Stainless Steel) (A523), Manual Override (Stainless Steel) (A537), Manual Override (Stainless Steel) (A541), Mounting Bracket (Stainless Steel) (A519, A523), Mounting Bracket (Stainless Steel) (A541), Mounting Bracket (Stainless Steel) (A555), Manual Override w/ Mounting Bracket (A519), Manual Override w/ Mounting Bracket (A523) |
| Voltage | AC24/60, AC120/60,110/50, AC240/60,220/50, DC12/DC, DC24/DC |
| Valve Features | |
|---|---|
| Valve: Brand | Asco |
| Valve: Bonnet | Stainless Steel |
| Valve: Pipe Size | 1/2 in, 3/4 in, 1 in |
| Valve: Actuation | Solenoid - Pilot Operated |
| Valve: Body Material | Plastic, Composite |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Disc Material | EPDM, TPE |
| Valve: Flow Factor (Cv) | 4.5, 7.0, 13.0 |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
| Valve: Max Temperature °F | 120 |
| Valve: Mounting Position | Any |
| Valve: Seal Material | EPDM, TPE |
| Valve: Shading Coil | Copper |
| Valve: Springs | Stainless Steel |
| Valve: Function | 2-Way Normally Closed |
| Valve: Core Tube | Stainless Steel |
| Valve: Min Temperature °F | 32 |
