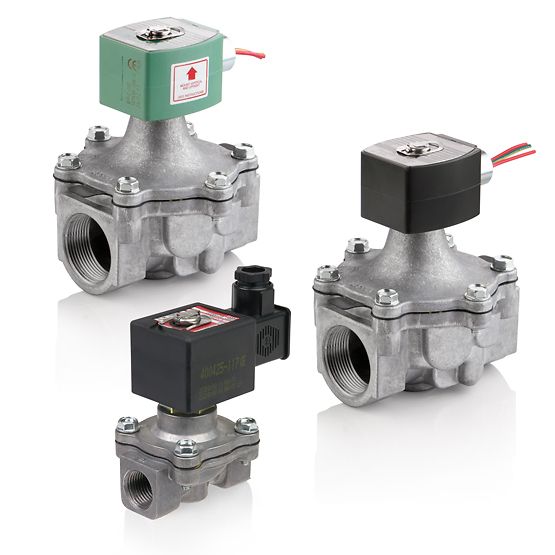

Representative photo. Please check item description for details.
Description
The ASCO Series 215, also known as 8215, is an aluminum body, lightweight gas safety shut off valve for high flow, low-pressure air or gas service. The pilot operated construction works from zero pressure differential with resilient soft seating for tight shut off. Optional long-life design eliminates metal-to-metal contact to extend life up to 20 million cycles. The 215 Series is ideal for vacuum service and heating equipment applications.
Features
- Provides high flow with Cv up to 138 (Kv 118)
- Due to the resilient soft seating, these valves are ideal for high flow low pressure air and gas applications.
- A full range of pipe sizes up to 3-inches with both Normally Closed and Normally Open constructions.
- Wide range of standard AC and DC voltages
- Optional 20 million cycle long life quiet design for air service in normally closed and normally open constructions and 1-inch to 2-inch pipe available
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Alternative Products
Specifications
| Asco 8215 2" HF NC | |
|---|---|
| Product Specifications | [B080] 2-3/32" Orifice | 60 Cv Flow, [G080] 2-3/32" Orifice | 60 Cv Flow |
| Solenoid Option | None, [EF] Explosionproof, [J] Junction Box (B080), [J] Junction Box (G080), [JB] Factory Assembled Junction Box, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit, [OF] Open Frame Spade and Screw Terminal Solenoids, [WP] Cable Gland w/Integral Strain Relief |
| Coil Options | None, [HT] Class H - High Temperature, [KF] Class F - High Temperature - Screw Terminals, [KH] Class H - High Temperature - Screw Terminals, [SC] Class F - High Temperature - DIN Connection, [SF] Class F - High Temperature - Spade Terminals, [ST] Class H - High Temperature - Spade Terminals, [SU] Class H - High Temperature - DIN Connection |
| Optional Lead Type | Standard, [L] Continuous Leads |
| Lead Length | Standard, 18" [D], 72" [K] |
| Optional Vacuum | Without, [VM] Medium Vacuum, [VH] High Vacuum |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Optional Seat/Disc/Etc. Material | None, [N] Oxygen, [V] FKM |
| Valve Features | |
|---|---|
| Valve: Brand | Asco |
| Valve: Core Guide | POM |
| Valve: Pipe Size | 2 in |
| Valve: Actuation | Solenoid - Direct Acting, Solenoid - Pilot Operated |
| Valve: Body Material | Aluminum |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Disc Material | NBR |
| Valve: Enclosure Type | Redhat II - Watertight, Redhat II - Explosionproof & Watertight, Redhat - Explosionproof & Raintight, Redhat - Type I |
| Valve: Flow Factor (Cv) | 60.0 |
| Valve: Media | Air-Inert Gas, Fuel Gas |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
| Valve: Mounting Position | Any, Vertical & Upright |
| Valve: Gas Capacity (Btu/hr) | 3,251,000 |
| Valve: Orifice | 2-3/32in |
| Valve: Seal Material | NBR |
| Valve: Shading Coil | Copper |
| Valve: Springs | Stainless Steel |
| Valve: Function | 2-Way Normally Closed |
| Valve: Core Tube | Stainless Steel |
| Valve: Diaphragm Material | NBR |
| Valve: Disc-Holder | PA |
| Valve: Min Temperature °F | 32 |
| Valve: Rider Rings | PTFE |
