Description

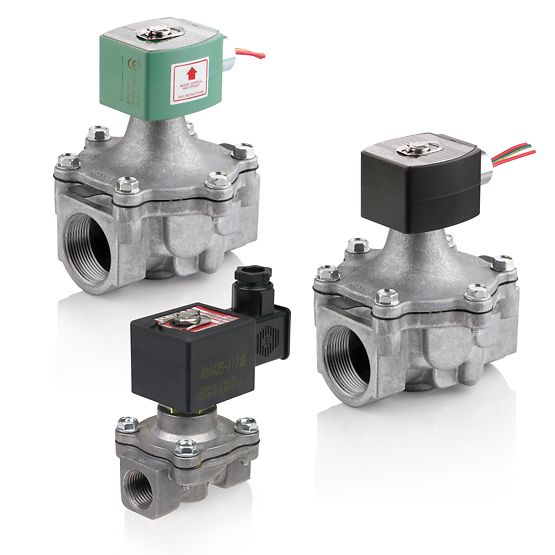

The ASCO Series 215, also known as 8215, is an aluminum body, lightweight gas safety shut off valve for high flow, low-pressure air or gas service. The pilot operated construction works from zero pressure differential with resilient soft seating for tight shut off. Optional long-life design eliminates metal-to-metal contact to extend life up to 20 million cycles. The 215 Series is ideal for vacuum service and heating equipment applications.
Features
- Provides high flow with Cv up to 138 (Kv 118)
- Due to the resilient soft seating, these valves are ideal for high flow low pressure air and gas applications.
- A full range of pipe sizes up to 3-inches with both Normally Closed and Normally Open constructions.
- Wide range of standard AC and DC voltages
- Optional 20 million cycle long life quiet design for air service in normally closed and normally open constructions and 1-inch to 2-inch pipe available
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Alternative Products
Specifications
| Asco 8215 3/8" HF NO | |
|---|---|
| Solenoid Option | None, Explosionproof, Junction Box, Factory Assembled Junction Box, Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, Open Frame Spade and Screw Terminal Solenoids |
| Coil Options | None, Class H - High Temperature, Class F - High Temperature - Screw Terminals, Class H - High Temperature - Screw Terminals, Class F - High Temperature - DIN Connection, Class F - High Temperature - Spade Terminals, Class H - High Temperature - Spade Terminals, Class H - High Temperature - DIN Connection, Class F - High Temperature - Mini 3 Pin Connector |
| Optional Lead Type | Standard, Continuous Leads |
| Lead Length | Standard, 18" Leads, 72" Leads |
| Optional Seat/Disc/Etc. Material | None, FKM |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, AC480/60, AC480/60,440/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Product Specifications | 3/4" Orifice | 3.5 Cv Flow |
| Valve Features | |
|---|---|
| Valve: Pipe Size | 3/8 in |
| Valve: Actuation | Solenoid - Direct Acting, Solenoid - Pilot Operated, Solenoid |
| Valve: Body Material | Aluminum |
| Valve: Media | Air-Inert Gas |
| Valve: Type | Automated |
| Valve: Orifice | 3/4in |
| Valve: Seal Material | NBR |
| Valve: Shading Coil | Copper |
| Valve: Springs | Stainless Steel |
| Valve: Function | 2-Way Normally Open |
| Valve: Rider Rings | PTFE |
