Watlow RR Style RTD, Single 3-Wire, Cast Alum. Conn. Head w/Isolated Transmitter, 1/4" OD, 22.5" SS Sheath w/Thermowell

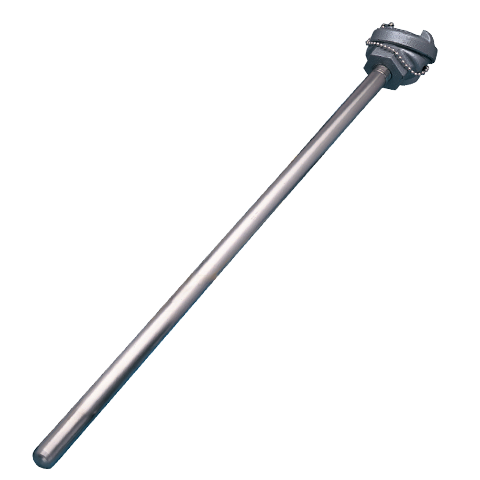

Representative photo. Please check item description for details.

Watlow RR Style RTD, Single 3-Wire, Cast Alum. Conn. Head w/Isolated Transmitter, 1/4" OD, 22.5" SS Sheath w/Thermowell

https://www.branom.com/web/image/product.template/185656/image_1920?unique=2e87ae5
(0 review)

RTD Sensor Style RR Style RTD with Double Fitting
Outside Diameter [in] J - .250 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C A - DIN Class A (+/-0.06%)
Thermowell Standard Thermowell
Thermowell Style TT - Threaded
Stem Configuration Threaded Taper
Immersion Length [in] (U) 22.500
Thermowell Material C - 316 SS
Process Connection (P) D - 3/4 inch NPT
Lag Dimension [in] (T) 4.75
Bore Diameter 0.260 Inch
Head Type E - Cast Aluminum
Conduit Connection A - 3/4 inch NPT
Termination Style B - 5900 Isolated Transmitter
Fitting F-Double Threaded, 303SS 1/2 NPT
Mounting Location [in] (A) 27.500
Tolerance [in] ± 1/2%
Attachment Method SB - Silver Braze
Transmitter Style B - 5900 Isolated, T/C or RTD
Sensor Type 0 - RTD PT100 3-WIRE 00385
Unit of Measure C - Celsius
Low Temperature Sign + Positive
Low Temperature 95
High Temperature Sign + Positive
High Temperature 135
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No


  • RTD: Brand
  • RTD: Connection Size
  • RTD: Connection Type

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

RTD Sensor Style RR Style RTD with Double Fitting
Outside Diameter [in] J - .250 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C A - DIN Class A (+/-0.06%)
Thermowell Standard Thermowell
Thermowell Style TT - Threaded
Stem Configuration Threaded Taper
Immersion Length [in] (U) 22.500
Thermowell Material C - 316 SS
Process Connection (P) D - 3/4 inch NPT
Lag Dimension [in] (T) 4.75
Bore Diameter 0.260 Inch
Head Type E - Cast Aluminum
Conduit Connection A - 3/4 inch NPT
Termination Style B - 5900 Isolated Transmitter
Fitting F-Double Threaded, 303SS 1/2 NPT
Mounting Location [in] (A) 27.500
Tolerance [in] ± 1/2%
Attachment Method SB - Silver Braze
Transmitter Style B - 5900 Isolated, T/C or RTD
Sensor Type 0 - RTD PT100 3-WIRE 00385
Unit of Measure C - Celsius
Low Temperature Sign + Positive
Low Temperature 95
High Temperature Sign + Positive
High Temperature 135
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No

Specifications

RTD: Brand Watlow
RTD: Connection Size 1/2 NPT
RTD: Connection Type Double Threaded
