Watlow 1/4" FIREROD Cartridge Heater, 2-1/4" Len., 120V, 55W, Alloy 800 Sheath, 12" Fiberglass Lead, Swaged In Leads

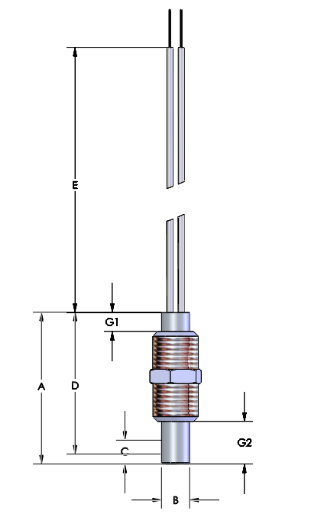

Diameter [in] (B) .246" +/- .002"
Overall Length [in] (A) 2.250
Length Tolerance +/- 3/32
Voltage [V] 120
Power [W] 55
Wattage Tolerance [%] + 5%,- 10%
Terminations Swaged In Leads
End Seal No Seal
Lead Type Fiberglass (GGS)
Lead Length [in] (E) 12
Sheath Materials Incoloy 800
Mounting Options Double 304 SS Threaded Fitting
Attachment Method W = Weld
CE No
Lead End No Heat [in] 'NOM' (D) 1.125
Disk End No Heat [in] 'NOM' (C) 0.250
Watt Density [w/in2] nom 74
Diameter [in] (B) .246" +/- .002"
Overall Length [in] (A) 2.250
Length Tolerance +/- 3/32
Voltage [V] 120
Power [W] 55
Wattage Tolerance [%] + 5%,- 10%
Terminations Swaged In Leads
End Seal No Seal
Lead Type Fiberglass (GGS)
Lead Length [in] (E) 12
Sheath Materials Incoloy 800
Mounting Options Double 304 SS Threaded Fitting
Attachment Method W = Weld
CE No
Lead End No Heat [in] 'NOM' (D) 1.125
Disk End No Heat [in] 'NOM' (C) 0.250
Watt Density [w/in2] nom 74
Specifications
| Temp Heater: Brand | Watlow |
| Temp Heater: Type | Cartridge |
| Temp Heater: Diameter | 1/4" |
| Temp Heater: Length Range | Up to 5" |
| Temp Heater: Length | 2.25" |
| Temp Heater: Voltage | 120V |
| Temp Heater: Power | Low Power (Under 199W) |
| Temp Heater: Lead / Termination Type | Leads |
| Temp Heater: Sheath Material | SS / Alloy 800 |
| Temp Heater: Max Op. Temp | Extreme Temp: Over 1000°F |
