Watlow 3" 150Lb Flanged Tubular Heater, 480 VAC, 6000W, 3 Elements, 33" Immersion, w/Type 3 Thermostat

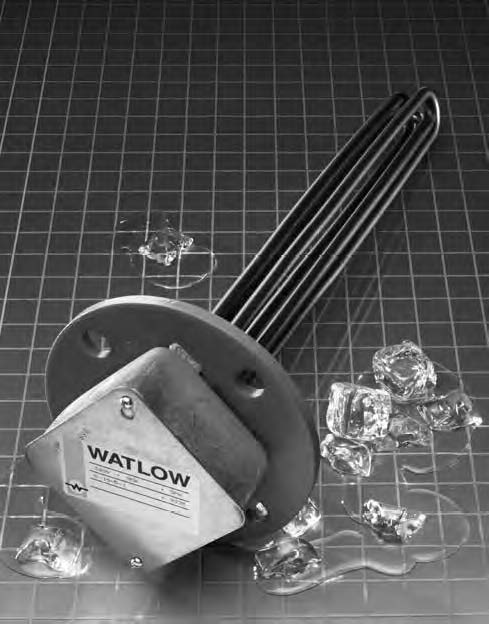

Representative photo. Please check item description for details.

Watlow 3" 150Lb Flanged Tubular Heater, 480 VAC, 6000W, 3 Elements, 33" Immersion, w/Type 3 Thermostat

https://www.branom.com/web/image/product.template/187062/image_1920?unique=ea7852d
(0 review)

Flange Voltage: 480
Flange Wattage: 6,000
Watt Density: 23.4
B Dimension (Immersed element length): 33.0000
Number of Elements: 3 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 1
Flange Size: 3 Inch Flange
Flange Class: 150 lb.
Flange Material: Steel Flange
Sheath Material: Steel
Baffles? No Baffles
Cold End Section below the Flange: 4.5625
Process Sensor: Type 3 Thermostat, 175-550°F
Hi-Limit Sensor: No Hi-Limit Sensor
Celsius Dial Plate? No
Stand-off Terminal Enclosure? No
Terminal Enclosure: Moisture Resistant (standard)
CE Low Volt Directive required? No
Nameplate Part Number: 2167-6493 FL7
