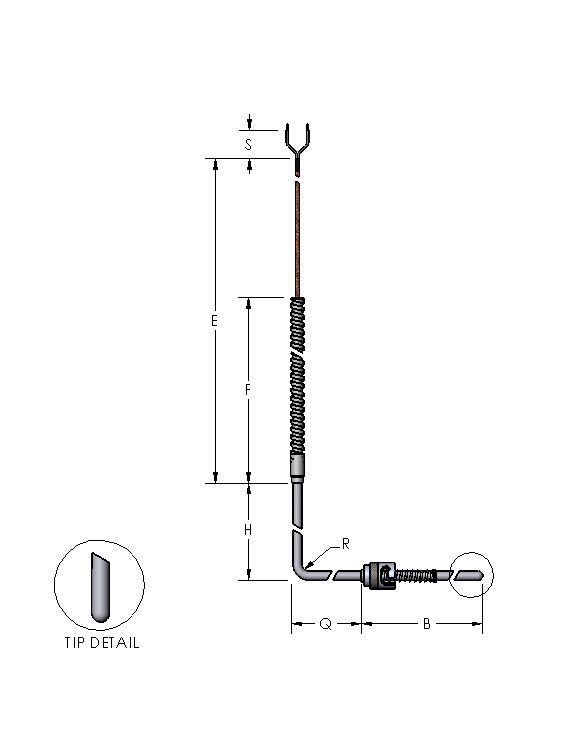

Watlow Style 32 Type J Thermocouple (Old P/N:32Djcgk099A)
Representative photo. Please check item description for details.

Watlow Style 32 Type J Thermocouple (Old P/N:32Djcgk099A)

https://www.branom.com/web/image/product.template/192606/image_1920?unique=b04e63a
(0 review)

Sensor Style 32 Style- .125 & .188 Dia-Bayonet-90°
Sheath Outside Diameter [in] D = .188 inch
Junction Type/Tip Style G: Single "G" Round Tip
Calibration Type Type J
Limits of Error Standard Limits
(B) Dimension 5.000
(Q) Dimension 0.750
(H) Dimension 1.625
Strain Relief None
Potting 00 - None
Lead Wire Type C -Fiberglass w/SS Flex Armor, 20 GA Stranded
Lead Length [in] (E) 99
Flex Armor Length [in] (F) 99
Termination Type A - Split Leads w/ 1/2" Bare
Insulated Singles Length [in] (S) 2.500
Lead wire Color Code ANSI - United States Standard


  • Measurement Maximum
  • Measurement Minimum

This combination does not exist.
