Watlow Watrod Heater, 120vac, 1200 watt

https://www.branom.com/web/image/product.template/187792/image_1920?unique=2a9b793
(0 review)

Voltage: 120
Wattage: 1,200
Watt Density (calc.): 37
Element Diameter: 0.315" Diameter
Sheath Material: Alloy 840 0.018" Wall Thickness (Std)
Top Cold End: 3.8750
Bottom Cold End: 3.8750
Catalog Figure Number: Catalog Figure No. 18
End Seal: Silicone Resin, 105 degree Celsius
Terminal Assembly: Stud, Ceramic, Full Assembly
Mounting: No Mounting Required
Surface Finish: Oxide Anneal

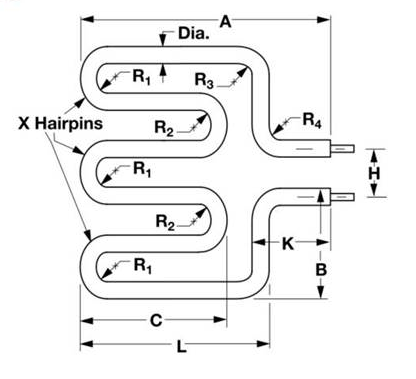

'A' Dimension (calculated): 8.6850
'B' Dimension (calculated): 3.0400
'C' Dimension: 4.0000
'H' Dimension: 3.0000
'K' Dimension: 3.0000
'L' Dimension: 6.0000
180 degree Radius (R1): 0.6875
180 degree Radius (R2): 0.6875
90 degree Radius (R3): 0.3750
90 degree Radius (R4): 0.3750
'X' Number of Outside Hairpins: 3
Sheath Length (calculated): 40.5625
Marking Part Number: 2172-9005 R3

NON- CANCELABLE / NON-RETURNABLE
