Watlow Watrod Heater, 120 VAC, 725 Watt Custom Made

https://www.branom.com/web/image/product.template/187794/image_1920?unique=2a9b793
(0 review)

Voltage: 120
Wattage: 1,200
Watt Density (calc.): 36
Element Diameter: 0.475" Diameter
Sheath Material: Alloy 800 0.035" Wall Thickness
Top Cold End: 2.5000
Bottom Cold End: 2.5000
Catalog Figure Number: Catalog Figure No. 31
End Seal: Silicone Resin, 105 degree Celsius
Terminal Assembly: Stud, Ceramic, Full Assembly
Mounting: No Mounting Required
Surface Finish: Oxide Anneal

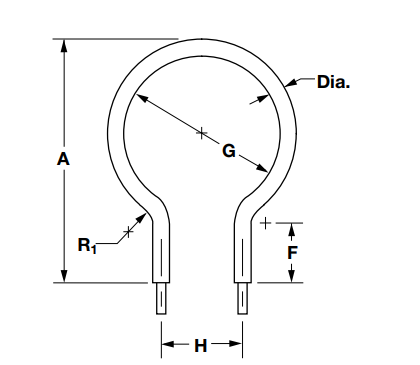

'A' Dimension (calculated): 11.2500
'F1' Dimension: 4.0000
'G' Dimension: 6.0000
'H' Dimension: 1.5000
Radius (R1): 0.6250
Sheath Length (calculated): 27.4375
Marking Part Number: 2174-8385 R7
