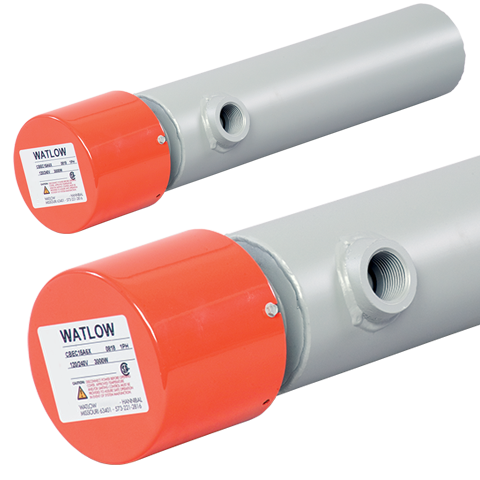

Watlow Circulation Heater, 2.5" Plug, 3 Elements

https://www.branom.com/web/image/product.template/188127/image_1920?unique=2a9b793
(0 review)

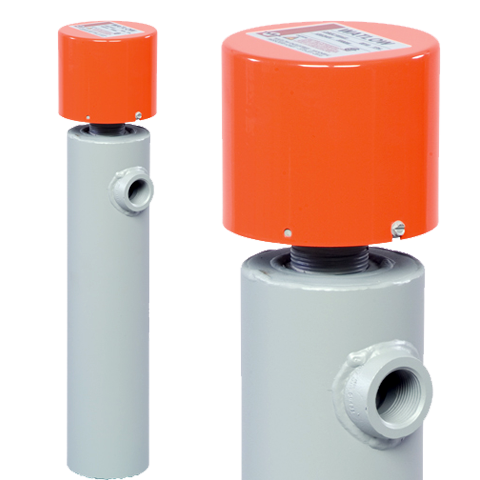

Circ Plug Size: 2 1/2 Inch Plug - 3 Elements
Circ Plug Voltage: 480
Circ Plug Wattage: 7,500
Watt Density: 50.1
B Dimension (Immersed element length): 20.6250
Electrical Phase configuration: 3 Phase - Delta wiring
Plug Material: 316 Stainless Steel, Standard Class
Element Material: 316 SS
Cold Section below Plug: 4.1250
Element Passivation? Yes
Element End Seal: Epoxy, 90 degree Celsius
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type J Thermocouple
Thermowell required? No
Mounting Orientation: Horizontal
Pilot Light: (not avail. with CSA or UL) No
Terminal Enclosure: Moisture Resistant (standard)

HEATER IS BASED ON P/N:CBLR720l5S BUT WATTAGE REDUCED TO 7500 WHICH ALLOWS FOR WATT
DENSITY TO WORK IN PROCESS WATER. ALL WETTED PARTS ARE 316 S/S AND THE INLET/OUTLETS
ARE 1" NPT. HI LIMIT IS A TYPE J THERMOCOUPLE WHICH THE PANEL(NEXT LINE) WILL BE SET UP FOR THE J.


    This combination does not exist.
