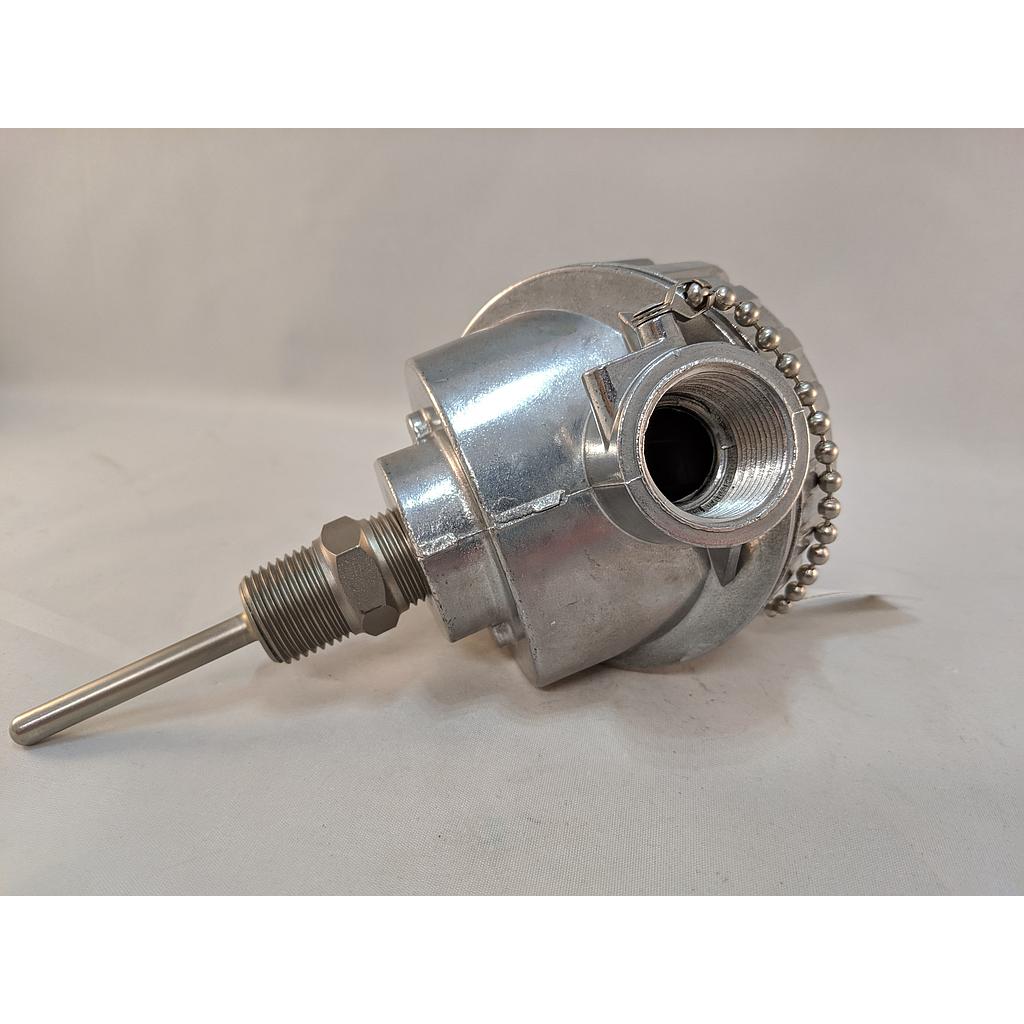

Watlow RT Style RTD, Dual 3-Wire, Cast Alum. Conn. Head, 1/4" OD, 20" SS Sheath, Spring Loaded
RTD Sensor Style RT Style 1 RTD with Nipple-Union-Nipple
Outside Diameter [in] J - .250 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type E - 100 ohms Dual 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Head Type E - Cast Aluminum
Conduit Connection A - 3/4 inch NPT
Nipple/Union Material A - Black Steel
"N" Dimension [in] 6.0
Spring Loading Yes
Sheath Length [in] (L) 20.000
Sheath Tolerance [in] ± 0.125
Tag Style 1 - 300 Series SST
Calibrate Sensor No
MADE-TO-ORDER PRODUCT.....NON-RETURNABLE/NON-CANCELABLE
RTD Sensor Style RT Style 1 RTD with Nipple-Union-Nipple
Outside Diameter [in] J - .250 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type E - 100 ohms Dual 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Head Type E - Cast Aluminum
Conduit Connection A - 3/4 inch NPT
Nipple/Union Material A - Black Steel
"N" Dimension [in] 6.0
Spring Loading Yes
Sheath Length [in] (L) 20.000
Sheath Tolerance [in] ± 0.125
Tag Style 1 - 300 Series SST
Calibrate Sensor No
MADE-TO-ORDER PRODUCT.....NON-RETURNABLE/NON-CANCELABLE
Specifications
| RTD: Brand | Watlow |
| RTD: Type | Probe w/Connection Head |
| RTD: Connection Size | 3/4 NPT |
| RTD: Connection Type | Conduit |
