Watlow 3/4" FIREROD Cartridge Heater, 11" Len., 208V, 2500W, Alloy 800 Sheath, 12" Fiberglass Lead

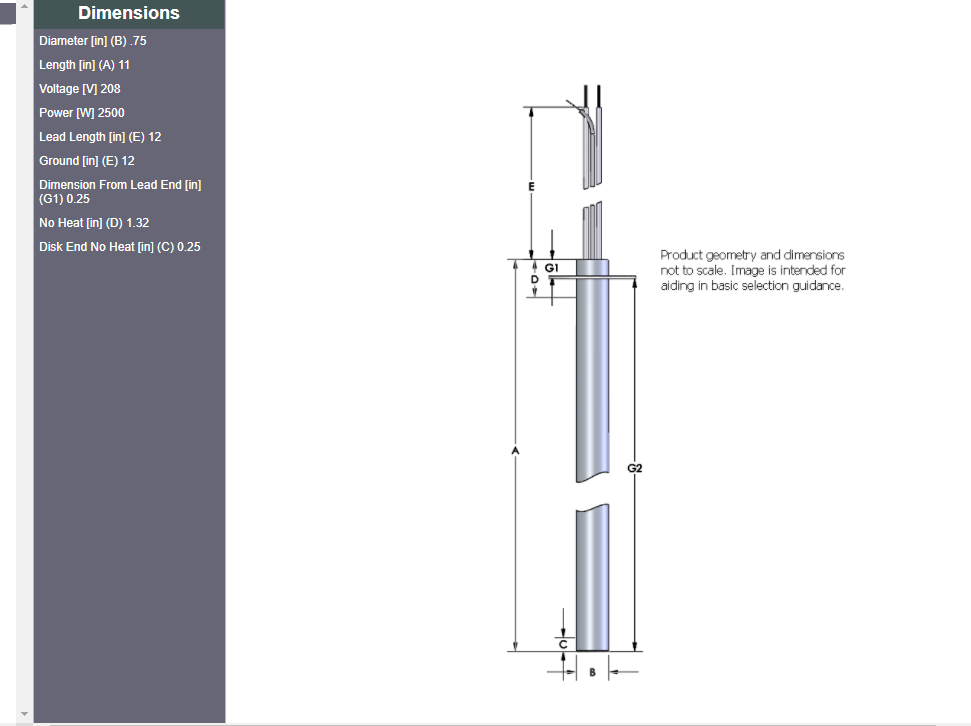

Diameter [in] (B) .746" +/- .002"
Overall Length [in] (A) 11.000
Length Tolerance + /- 2%
Voltage [V] 208
Power [W] 2,500
Wattage Tolerance [%] + 5%,- 10%
Terminations Swaged In Leads
End Seal No Seal
Lead Type Fiberglass (GGS)
Lead Length [in] (E) 12
Ground Lead Length [in] (E) 12
Sheath Materials Incoloy 800
Mounting Options Large Flange (FL)
Distance From Lead End [in] (G1) 0.250
Attachment Method X = Silver Solder
LINE 4 2193-0788
CE No
Lead End No Heat [in] 'NOM' (D) 1.320
Disk End No Heat [in] 'NOM' (C) 0.25
Watt Density [w/in2] nom 113
Diameter [in] (B) .746" +/- .002"
Overall Length [in] (A) 11.000
Length Tolerance + /- 2%
Voltage [V] 208
Power [W] 2,500
Wattage Tolerance [%] + 5%,- 10%
Terminations Swaged In Leads
End Seal No Seal
Lead Type Fiberglass (GGS)
Lead Length [in] (E) 12
Ground Lead Length [in] (E) 12
Sheath Materials Incoloy 800
Mounting Options Large Flange (FL)
Distance From Lead End [in] (G1) 0.250
Attachment Method X = Silver Solder
LINE 4 2193-0788
CE No
Lead End No Heat [in] 'NOM' (D) 1.320
Disk End No Heat [in] 'NOM' (C) 0.25
Watt Density [w/in2] nom 113
Specifications
| Temp Heater: Brand | Watlow |
| Temp Heater: Type | Cartridge |
| Temp Heater: Diameter | 3/4" |
| Temp Heater: Length Range | 6" to 11" |
| Temp Heater: Length | 11.00" |
| Temp Heater: Voltage | 208V |
| Temp Heater: Power | Heavy Industrial (Over 1500W) |
| Temp Heater: Sheath Material | Alloy 800 |
| Temp Heater: Max Op. Temp | Extreme Temp: Over 1000°F |
