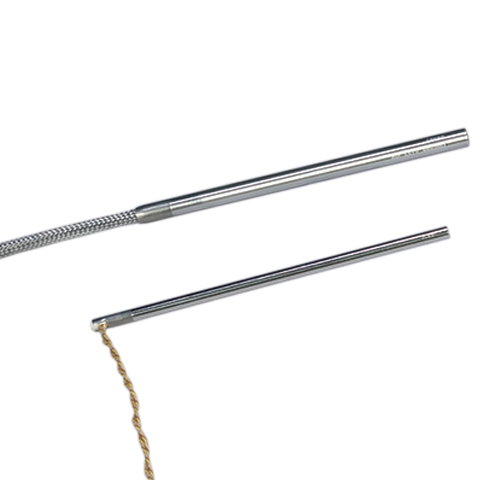

Watlow 3/8" FIREROD Cartridge Heater, 7" Len., 220V, 500W, Alloy 800 Sheath, 24" High Temp Lead, Swaged In Leads
Diameter [in] (B) .371" +/- .002"
Overall Length [in] (A) 7.000
Length Tolerance + /- 2%
Voltage [V] 220
Power [W] 500
Wattage Tolerance [%] + 5%,- 10%
Terminations Swaged In Leads
End Seal No Seal
Lead Type High Temp (MGT)
Lead Length [in] (E) 24
Thermocouple B = On Sheath
T/C Type K = Chromel-P / Alumel
T/C Length [in] 24
Sheath Materials Incoloy 800
Mounting Options Small Flange (FS)
Distance From Disk End [in] (G2) 6.250
Attachment Method S = Stake
CE No
Lead End No Heat [in] 'NOM' (D) 1.000
Disk End No Heat [in] 'NOM' (C) 0.25
Watt Density [w/in2] nom 78
Diameter [in] (B) .371" +/- .002"
Overall Length [in] (A) 7.000
Length Tolerance + /- 2%
Voltage [V] 220
Power [W] 500
Wattage Tolerance [%] + 5%,- 10%
Terminations Swaged In Leads
End Seal No Seal
Lead Type High Temp (MGT)
Lead Length [in] (E) 24
Thermocouple B = On Sheath
T/C Type K = Chromel-P / Alumel
T/C Length [in] 24
Sheath Materials Incoloy 800
Mounting Options Small Flange (FS)
Distance From Disk End [in] (G2) 6.250
Attachment Method S = Stake
CE No
Lead End No Heat [in] 'NOM' (D) 1.000
Disk End No Heat [in] 'NOM' (C) 0.25
Watt Density [w/in2] nom 78
Specifications
| Temp Heater: Brand | Watlow |
| Temp Heater: Type | Cartridge |
| Temp Heater: Diameter | 3/8" |
| Temp Heater: Length Range | 6" to 11" |
| Temp Heater: Length | 7.00" |
| Temp Heater: Voltage | 220V |
| Temp Heater: Power | Medium Power (200W - 500W) |
| Temp Heater: Lead / Termination Type | Swaged In Leads |
| Temp Heater: Sheath Material | Alloy 800 |
| Temp Heater: Max Op. Temp | Extreme Temp: Over 1000°F |
