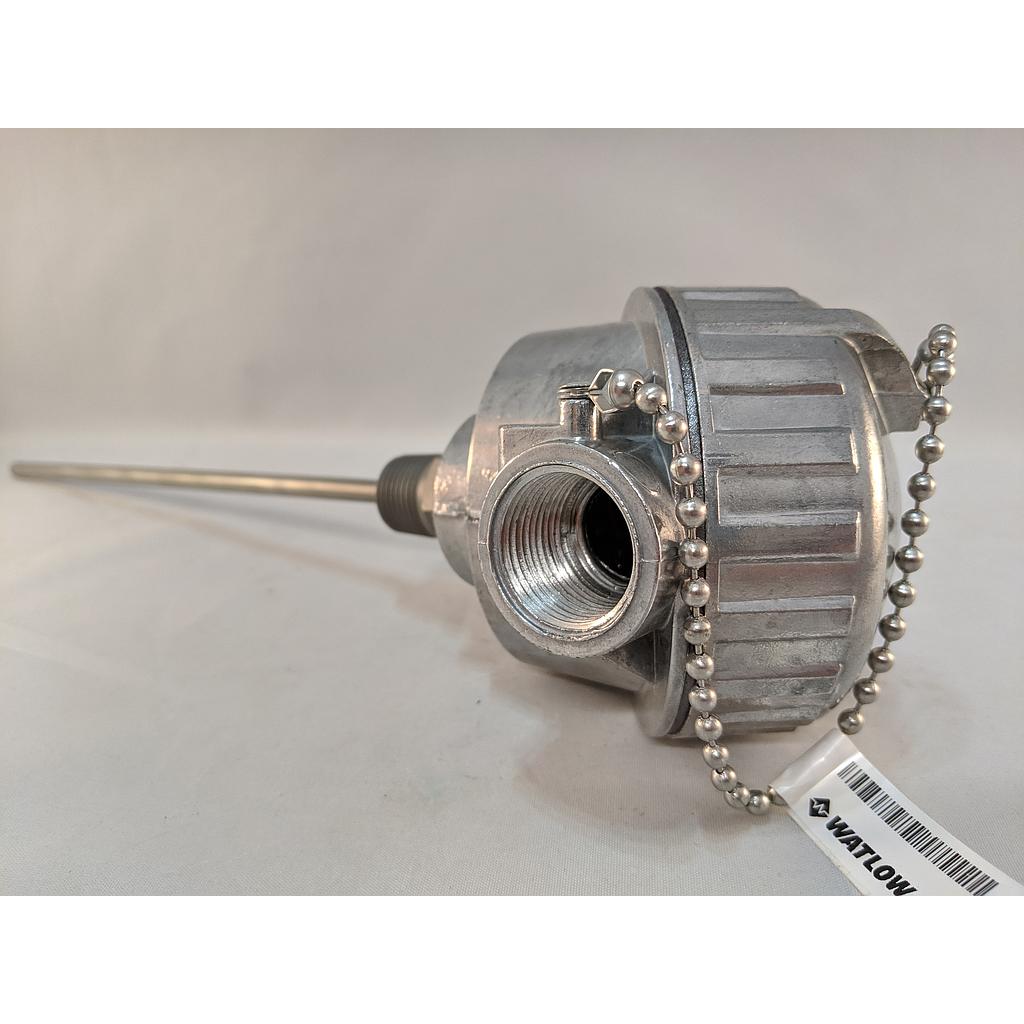

Watlow RR Style RTD, Single 3-Wire, 1/4" OD x 79.5" SS Sheath, Aluminum Head
RTD Sensor Style RR Style RTD with Double Fitting
Outside Diameter [in] J - .250 Inch
Sheath Type K = 316/316L SS Mineral Insulated
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Thermowell No Thermowell - Sensor Only
Head Type E - Cast Aluminum
Conduit Connection A - 3/4 inch NPT
Termination Style A - Terminal Block/Strip
Fitting F-Double Threaded, 303SS 1/2 NPT
Mounting Location [in] (A) 79.500
Tolerance [in] ± 1/2%
Attachment Method SB - Silver Braze
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No
Model RRJEF0K794BB000
RTD Sensor Style RR Style RTD with Double Fitting
Outside Diameter [in] J - .250 Inch
Sheath Type K = 316/316L SS Mineral Insulated
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Thermowell No Thermowell - Sensor Only
Head Type E - Cast Aluminum
Conduit Connection A - 3/4 inch NPT
Termination Style A - Terminal Block/Strip
Fitting F-Double Threaded, 303SS 1/2 NPT
Mounting Location [in] (A) 79.500
Tolerance [in] ± 1/2%
Attachment Method SB - Silver Braze
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No
Model RRJEF0K794BB000
Specifications
| RTD: Brand | Watlow |
| RTD: Accuracy | Class B |
| RTD: Circuit Type | Single 3-Wire |
| RTD: Connection Size | 1/2 NPT |
| RTD: Connection Type | Double Threaded |
| RTD: Output | Pl100 Ω |
| RTD: Length (Probe/Sheath/TW) | 79.5 in |
| RTD: Stem Diameter | 1/4 in |
| RTD: Wetted Material | SS |
| RTD: Has Thermowell | No |
| RTD: Cover / Head Material | Aluminum |
