Watlow 22 Series Style Thermocouple, Type K, Dual Element

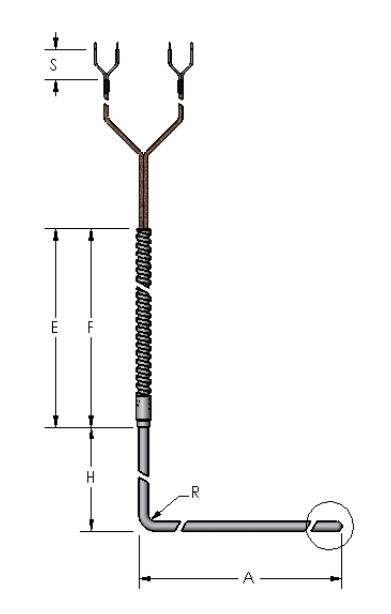

Representative photo. Please check item description for details.

Watlow 22 Series Style Thermocouple, Type K, Dual Element

https://www.branom.com/web/image/product.template/196564/image_1920?unique=89cf136
(0 review)

Sensor Style 22 Style- .125 & .188 Dia-90° Bend
Sheath Outside Diameter [in] D = .188 inch
Junction Type/Tip Style S: Dual Common "U" Round Tip
Calibraton Type Type K
Limits of Error Standard Limits
Hot Leg Length [in] (A) 3.000
Cold leg length [in] (H) 1.375
Process Mtg Fitting None
Potting 00 - None
Lead Wire Type K -PFA w/SS Flex Armor, 24 GA Stranded
Lead Length [in] (E) 29
Flex Armor Length [in] (F) 29
Termination Type A - Split Leads w/ 1/2" Bare

Insulated Singles Length [in] (S) 2.500
Lead wire Color Code ANSI - United States Standard
Certification Type No Certification Required


    This combination does not exist.
