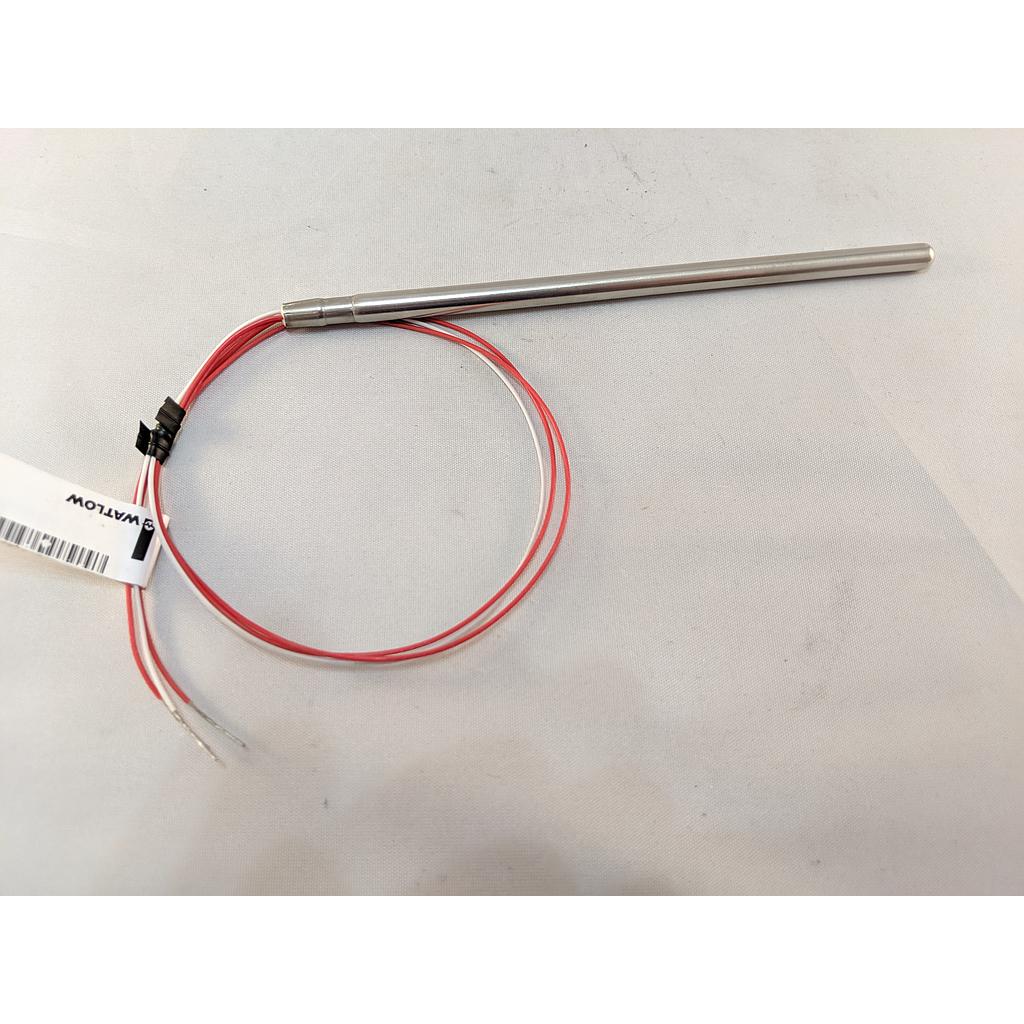

Watlow RB Style RTD, Single 3-Wire, SS, 3/16" OD x 4" Sheath, 30' Fiberglass/SS Lead
RTD Sensor Style RB Style RTD
Outside Diameter [in] H - .188 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Mounting Options B - Fixed Single Thread 1/4 NPT
Fitting Material 303 Stainless Steel
Threads Facing Hot End Yes
Mounting Location 3.000
Attachment Method SB - Silver Braze
Bend Option Straight Length
Sheath Length [L] (In) 4.000
Lead Wire Construction J - Fiberglass Stranded with SS Overbraid
Lead Wire Length in inches 360
Lead Wire Termination T - Standard Leads
Sheath Cold End Style None-Smooth
Insulated Singles Length 2.0
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No
RTD Sensor Style RB Style RTD
Outside Diameter [in] H - .188 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Mounting Options B - Fixed Single Thread 1/4 NPT
Fitting Material 303 Stainless Steel
Threads Facing Hot End Yes
Mounting Location 3.000
Attachment Method SB - Silver Braze
Bend Option Straight Length
Sheath Length [L] (In) 4.000
Lead Wire Construction J - Fiberglass Stranded with SS Overbraid
Lead Wire Length in inches 360
Lead Wire Termination T - Standard Leads
Sheath Cold End Style None-Smooth
Insulated Singles Length 2.0
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No
Specifications
| RTD: Brand | Watlow |
| RTD: Connection Size | 1/4 NPT |
| RTD: Connection Type | Single Threaded, Fixed |
| RTD: Output | 100 Ω |
| RTD: Length (Probe/Sheath/TW) | 4 in |
| RTD: Stem Diameter | 3/16 in |
